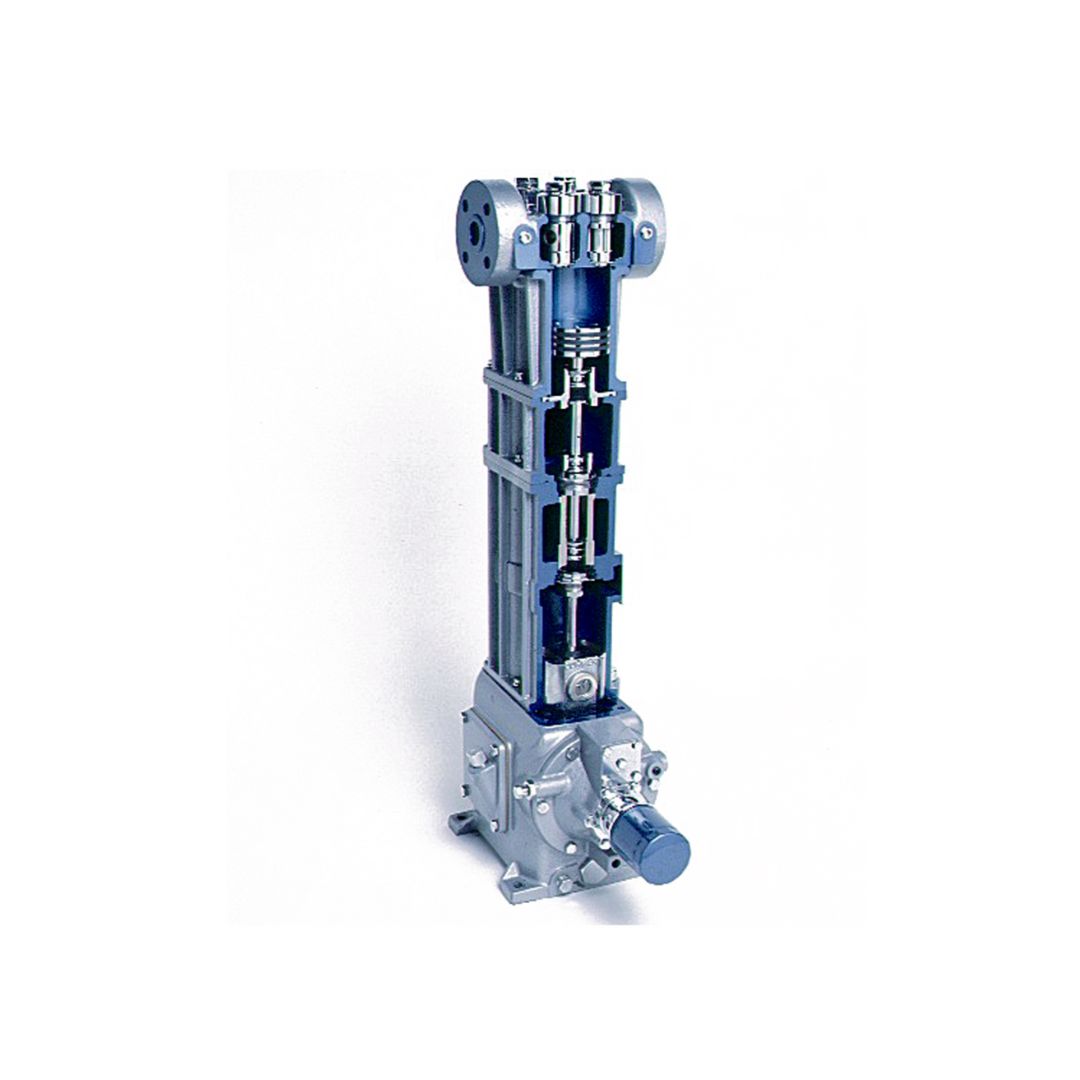

Corken D91 Vertical Gas Compressor: High-Performance Single-Stage Compression
The Corken D91 Vertical Gas Compressor is a robust, single-stage compressor designed for efficient gas compression in industrial settings. This D-Style extended shaft model offers reliable performance and moderate leakage containment for toxic and corrosive applications.
Key Features and Benefits
- Oil-free gas compression: Ensures product purity and reduces contamination risks
- Double packed design: Provides moderate leakage containment for enhanced safety
- Adjustable speed range: Allows for flexible operation from 400 to 825 RPM
- Durable construction: Withstands harsh industrial environments for long-lasting performance
- Extended shaft configuration: Enables easy integration with various drive systems
Technical Specifications
| Specification | Value |
|---|---|
| Model Family | D91 |
| Cylinder Bore | 3.0 in (76.2 mm) |
| Stroke | 2.5 in (63.5 mm) |
| Piston Displacement | 4.0-8.3 CFM (6.8-14.1 m³/hr) |
| Maximum Working Pressure | 350 PSIA (24.1 bar a) |
| Maximum Brake Horsepower | 7.5 HP (5.6 kW) |
| Maximum Rod Load | 3,600 lbs (1,633 kg) |
| Maximum Outlet Temperature | 350°F (177°C) |
| Weight (with Flywheel) | 150 lbs (68.0 kg) |
