Raven
MPN: 063-0172-457

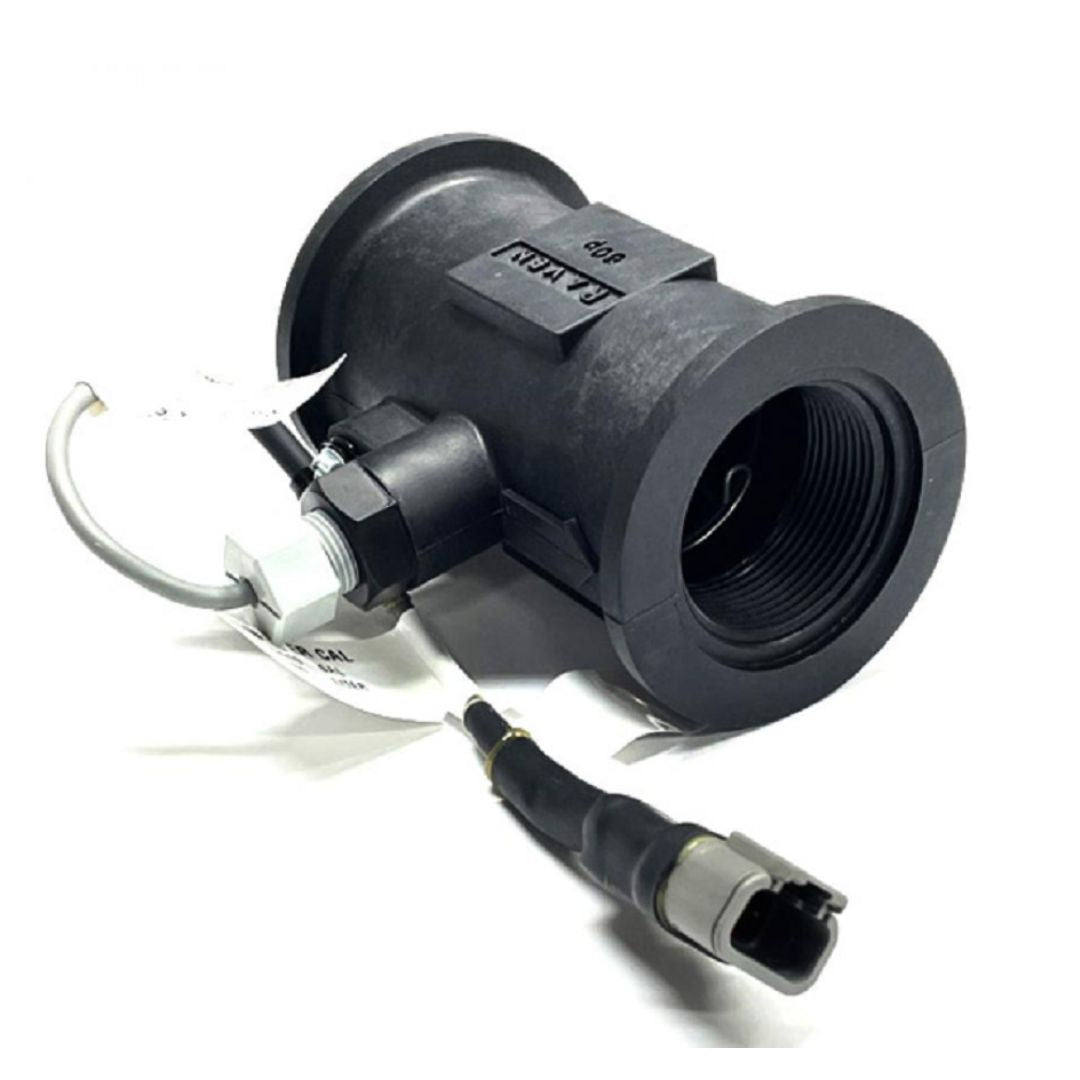

Raven RPM 60P Flow Meter 2" Poly , 1-60 GPM, High Pulse DEUTSCH DTM (063-0172-457)
Raven RPM 60P Flow Meter 2" Poly , 1-60 GPM, High Pulse DEUTSCH DTM (063-0172-457)
SKU:RV0630172-457
Regular price
$1,121.00 AUD
Regular price
Sale price
$1,121.00 AUD
Unit price
/
per
Couldn't load pickup availability
Precision Flow Measurement for Agricultural and Industrial Applications
The Raven RFM-60P High Pulse Flow Meter offers accurate liquid flow measurement for a wide range of agricultural and industrial uses. This durable polypropylene meter ensures reliable performance in demanding environments.
Key Features and Benefits
- High pulse output: Provides precise flow measurements with around 1400 revolutions per gallon
- Wide flow range: Accurately measures from 1 to 60 GPM (3.8 to 227 LPM)
- Chemical compatibility: Polypropylene construction suitable for most liquids and chemicals
- Versatile applications: Ideal for irrigation, chemical production, and water treatment
- Easy integration: Compatible with electronic totalizers and flow devices
Technical Specifications
| Specification | Detail |
|---|---|
| Flow Range | 1-60 GPM (3.8-227 LPM) |
| Body Material | Polypropylene |
| Connection Size | 2" (50.8 mm) |
| Connection Type | M200 Flange / 1-1/2" FPT |
| Max Pressure | 175 PSI (12 bar) |
| Pulse Output | Approx. 1400 pulses/gallon |
| Supply Voltage | 5 VDC |
| Supply Current | 10 mA |
