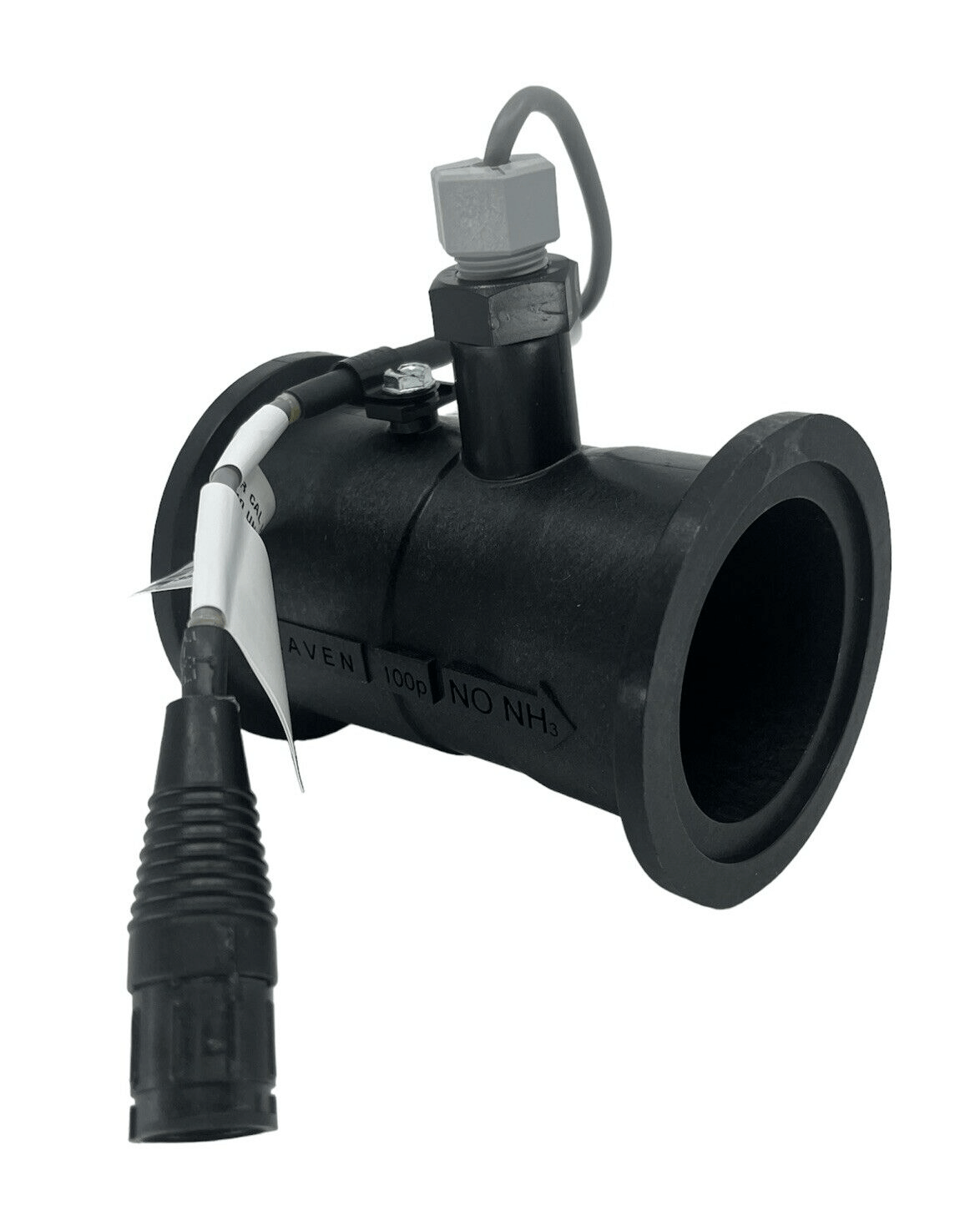

• Close-up of a black plastic pipe fitting with connectors and wires attached, isolated on a white background, ideal for agricultural applications like integrating a Raven RFM 100 Poly Flow Meter (5-100 GPM) with M220 flange inlet and outlet.

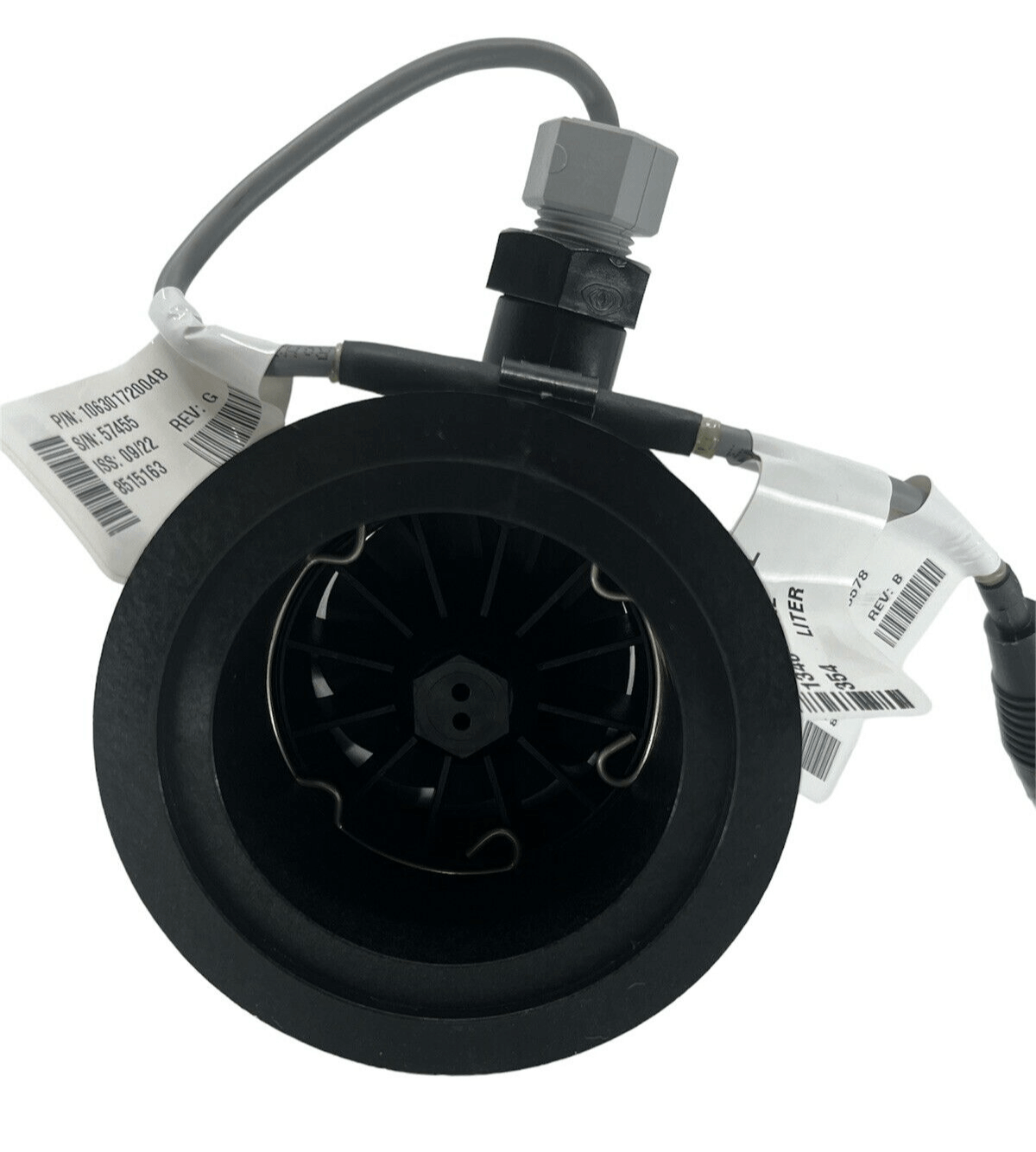

  • A black industrial component, the Raven RFM 100 Poly Flow Meter, featuring a circular opening and attached wires, is labeled with several tags. Designed for precision in agricultural applications, this unit integrates a robust polypropylene flow meter and has an M220 flange inlet and outlet to accommodate flows between 5 and 100 GPM.

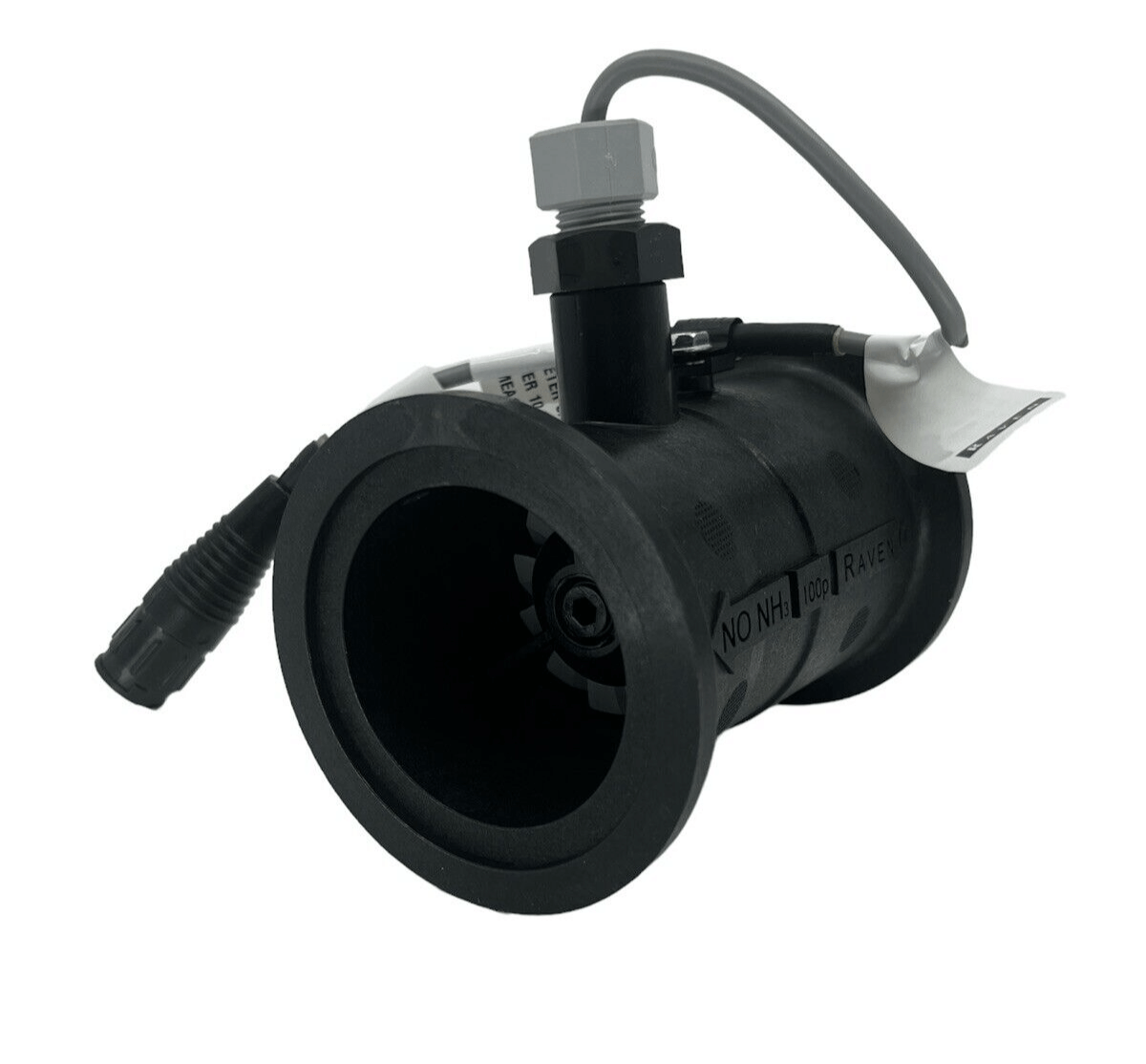

  • The Raven RFM 100 Poly Flow Meter, with a flow range of 5-100 GPM and M220 flange inlet and outlet connections, is designed in black polypropylene. It is equipped with a cable and sensor, making it ideal for agricultural use, and is elegantly highlighted against a white background to emphasize its sleek design.

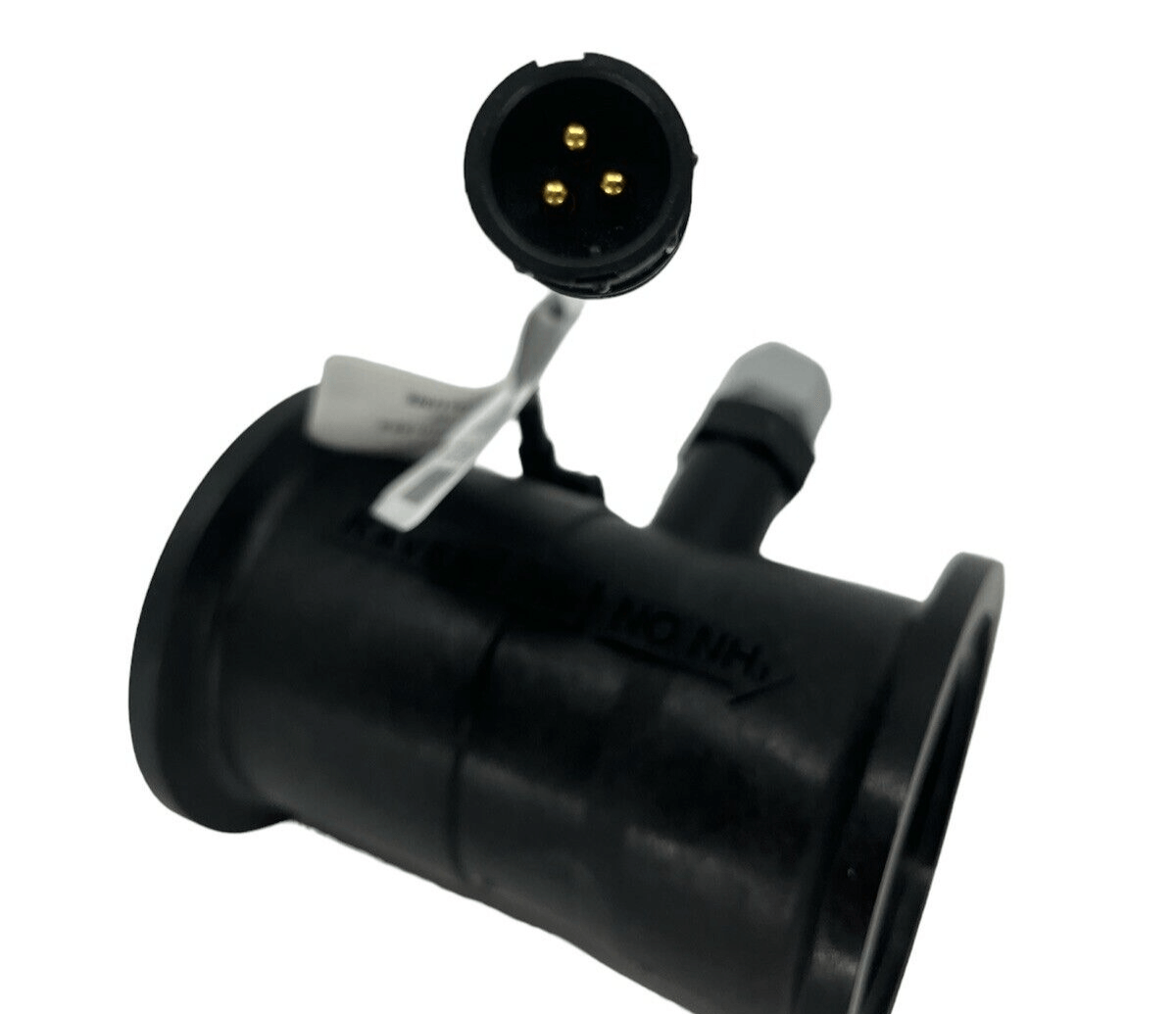

  • Close-up of a black cylindrical electrical connector with a three-pin plug on top, ideal for agricultural applications, such as the precise measurement offered by devices like the Raven RFM 100 Poly Flow Meter, 5-100 GPM, M220 Flange Inlet & Outlet.
1 4

Raven

MPN: 1-063-0173-578

Raven RFM 100 Poly Flow Meter, 5-100 GPM, M220 Flange Inlet & Outlet

Raven RFM 100 Poly Flow Meter, 5-100 GPM, M220 Flange Inlet & Outlet

RV0630173-578

$1,862.00 AUD
$1,862.00 AUD
Sale Currently Sold Out - Back Orders Possible

The Raven RFM 100 Polypropylene Flow Meter is a highly accurate and reliable flow meter designed for a wide range of agricultural and industrial applications. This flow meter is compatible with most chemicals and liquids, making it an ideal choice for various uses.

Key features include:

  • Flow Rate: 5-100 GPM (18.9-380 L/min)
  • Connection: M220 Flange Inlet x Outlet
  • Material: Poly construction for durability and chemical resistance
  • Turn Down Ratio: 50:1 for precise measurement
  • Operating Pressure: Up to 150 PSI
  • Operating Temperature: -40°F to 140°F (-40°C to 60°C)
  • Applications: Suitable for industrial, water/wastewater, and agricultural uses

 (ORDER 117-0171-689 WITH IT)



View full details
