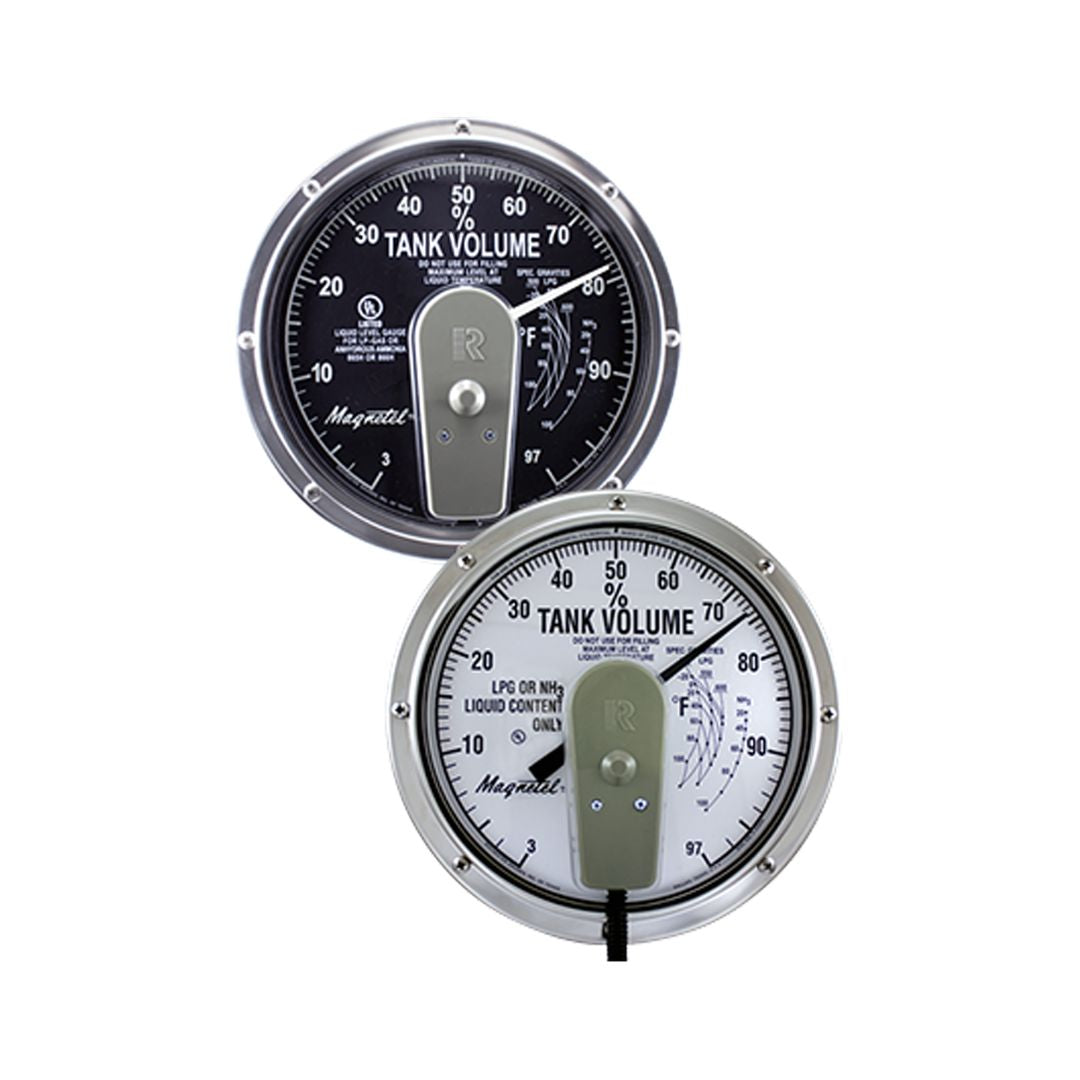

• The Rochester Magnetel 8" Dial Gauge (model 5ANGS03044), available in black and white, accurately indicates liquid levels from 3% to 97%. Featuring "R" handles and the Rochester brand, these gauges provide precise monitoring of LP gas levels.
1 1

Rochester

MPN: 5ANGS03044

Rochester Magnetel 8" Dial Gauge - 3-97% Range, LP/NH3 (5ANGS03044)

Rochester Magnetel 8" Dial Gauge - 3-97% Range, LP/NH3 (5ANGS03044)

ROC5-03044

$389.00 AUD
$389.00 AUD
Sale Currently Sold Out - Back Orders Possible

Precision LP/NH3 Level Monitoring for Stationary Tanks

The Rochester Magnetel 8" Dial Gauge (5ANGS03044) is a high-quality, magnetically-driven liquid level indicator designed for accurate measurement of LP gas and anhydrous ammonia in stationary tanks. This gauge provides both direct visual reading and electrical output for remote monitoring, ensuring efficient inventory management and timely refills.

Key Features and Benefits

  • Magnetoresistive technology: Provides reliable, contact-free measurement for extended service life
  • Dual functionality: Offers direct visual reading and electrical output for versatile monitoring options
  • Wide range: Measures 3-97% of tank capacity for comprehensive level tracking
  • Durable construction: Built with high-quality materials to withstand harsh environments
  • Intrinsically safe design: Suitable for use in hazardous locations with proper power source

Technical Specifications

Specification Details
Dial Size 8" (203.2 mm)
Measurement Range 3-97%
Accuracy ±2% of full scale
Operating Temperature -40°F to 176°F (-40°C to 80°C)
Voltage Range 4.5V to 5.5V (ratiometric)
Operating Current 8 mA (No Load)
Output Current ±1 mA
Lens Material Acrylic plastic
Cover Material Acetal plastic
Bezel Material Stainless steel
Case Material Aluminum
Compatibility LP Gas and Anhydrous Ammonia
