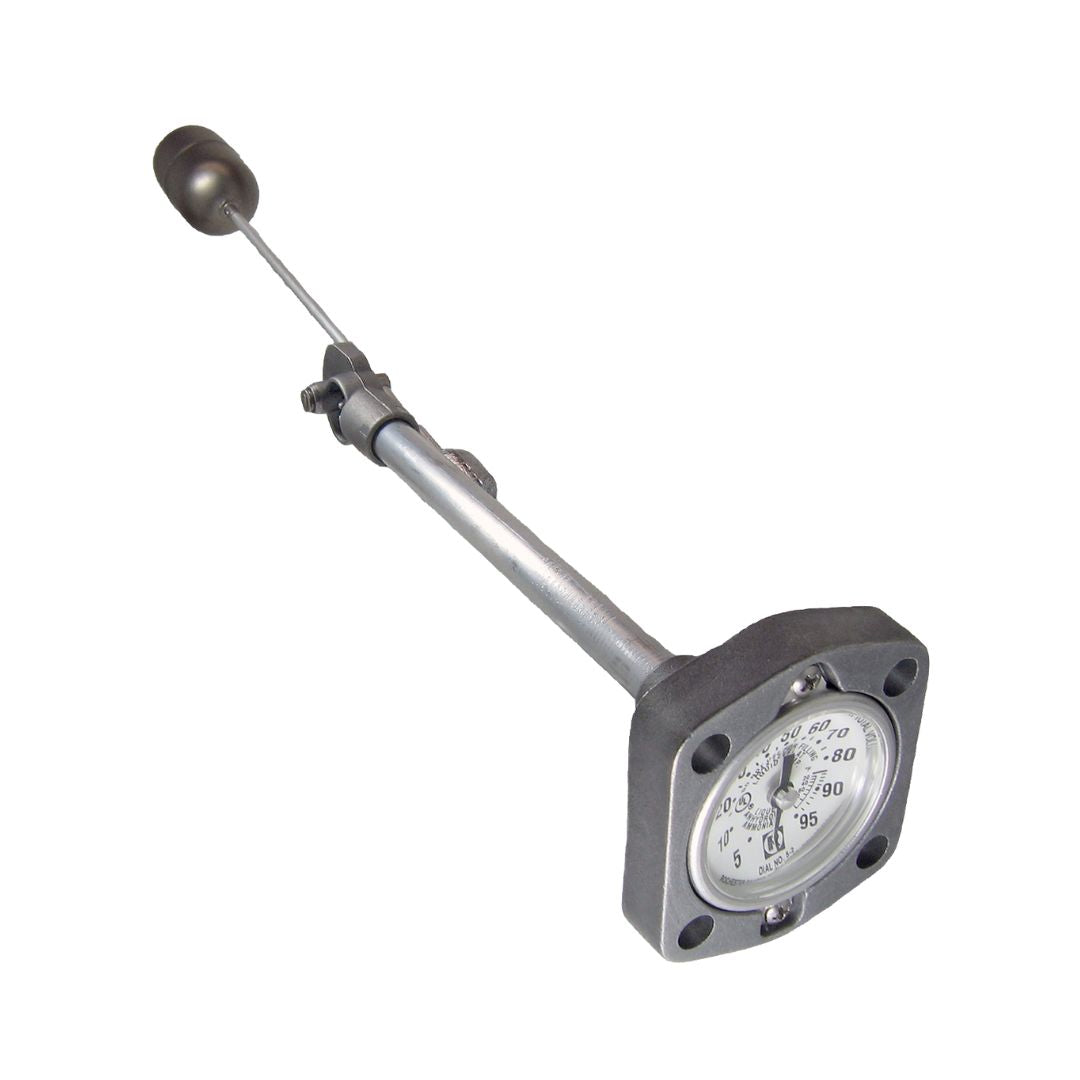

• The Rochester Senior Gauge - 49" Top Mount Liquid Level Sensor (A6283-1-49) by Rochester features a float attached via an arm for measuring anhydrous ammonia levels, showcased on a white background.
1 1

Rochester

MPN: A6283-1-49

Rochester Senior Gauge - 49" Top Mount Liquid Level Sensor (A6283-1-49)

Rochester Senior Gauge - 49" Top Mount Liquid Level Sensor (A6283-1-49)

ROCA6283-1-49

$243.00 AUD
$243.00 AUD
Sale Currently Sold Out - Back Orders Possible

Rochester A6283 Senior Gauge - Precise NH3 Level Monitoring

Accurately measure anhydrous ammonia levels with this top-mounted 49" Rochester Senior Gauge. Designed for durability and reliability in harsh environments.

Key Features and Benefits

  • Durable aluminum construction: Withstands corrosive NH3 environments
  • Magnetic drive mechanism: Ensures accurate readings without direct contact
  • Top-mount design: Easy installation and maintenance
  • UL listed for NH3 service: Meets safety standards for anhydrous ammonia applications

Technical Specifications

Specification Detail
Tank Diameter 49" (124.46 cm)
Mounting Type Top
Temperature Range -40°F to 176°F (-40°C to 80°C)
Maximum Pressure 375 PSI (25.8 Bar)
Bolt Circle 2-1/2" (63.5 mm)
Mounting Bolts Four 5/16" - 24 x 7/8" zinc-plated steel
Gasket Neoprene
Float Material Tempered aluminum
Accuracy Typically ±5% of dial indication
