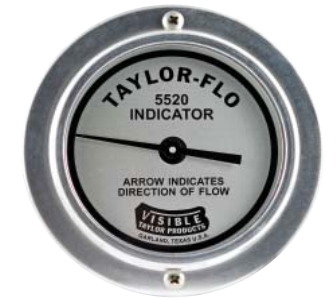

• The Squibb Taylor Flow Indicator Dial 4" is a round gauge with a needle pointing right to indicate the direction of flow, making it perfect for industrial agricultural applications. This versatile unit can be used as both an LP-Gas flow indicator and an anhydrous ammonia flow indicator.
1 1

Squibb Taylor

MPN: 5520R

Squibb Taylor Flow Indicator Dial 4"

Squibb Taylor Flow Indicator Dial 4"

SQ5520R

$154.00 AUD
$154.00 AUD
Sale Currently Sold Out - Back Orders Possible

The Squibb Taylor Flow Indicator Dial 4" (Part Number: 5520R) is designed to indicate the direction of flow for LP-Gas or Anhydrous Ammonia (NH3) in piping systems at working pressures up to 500 psig (34 Bar). This robust indicator is essential for ensuring proper flow direction in industrial and agricultural applications.

Key Features:

  • Includes: Dial, Bezel, Bracket, and Screws
  • Material: 300 Series Stainless Steel for head, center shaft, support tube, bearings, and vane
  • Magnets: Nickel-plated Alnico
  • Mounting Adapters: Forged Steel
  • Dial Face: Large 4” hermetically sealed face showing flow in both directions or absence of flow
  • Installation: Must be installed in piping tees
  • Torque: Mounting bolts to 140 to 150 in-lb

Specifications:

  • Pressure Rating: Up to 500 psig (34 Bar)
  • Dial Size: 4 inches
  • Materials: Stainless Steel, Nickel-plated Alnico, Forged Steel
  • Weight: Approximately 1.5 kg
