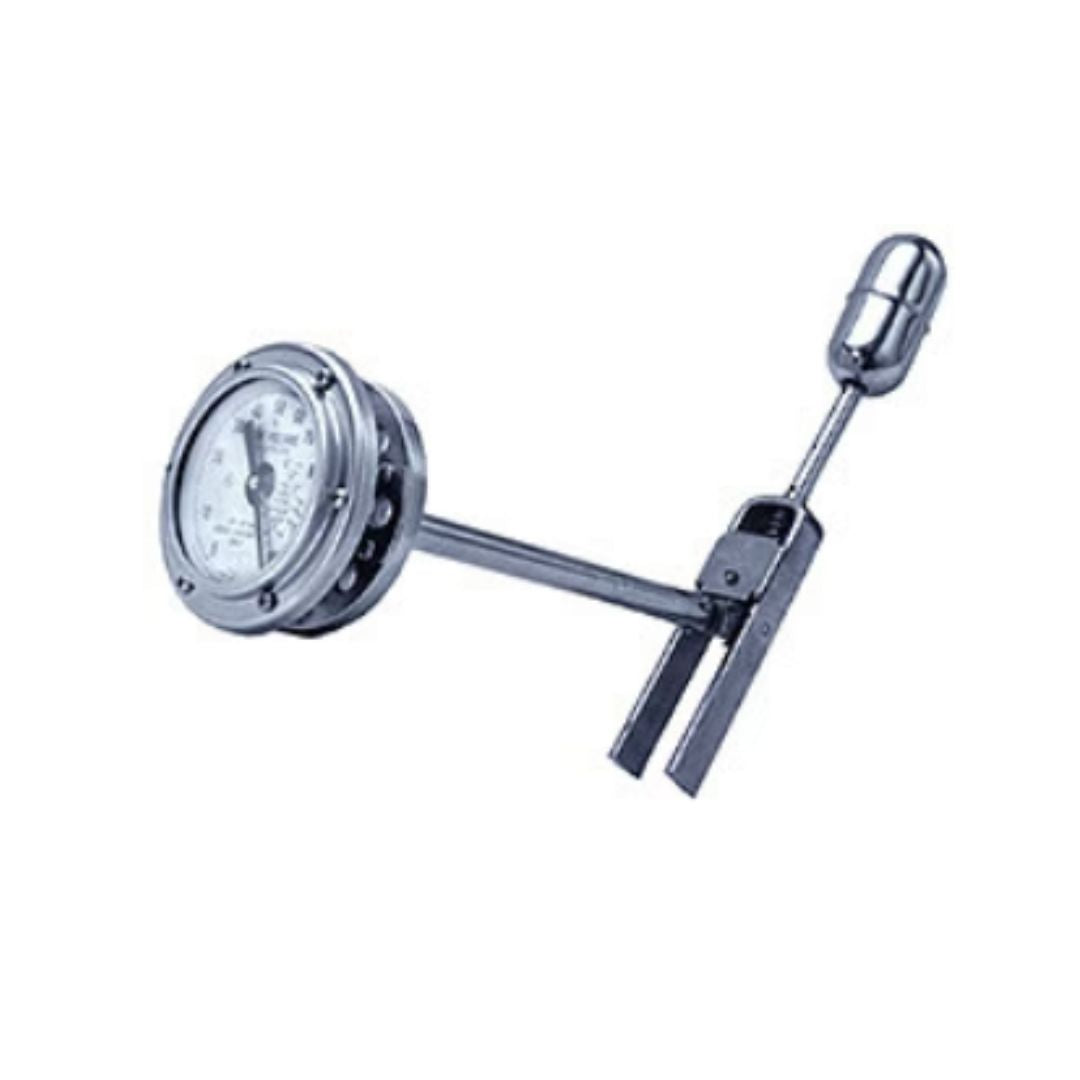

• The Squibb Taylor RoadMaster Gauge - 72" Tank, 8-Bolt Mount (RM1833-72) is a metallic analogue industrial gauge with an attached float, ideal for measuring liquid level readings in mobile tanks.
1 1

Squibb Taylor

MPN: RM1833-72

Squibb Taylor RoadMaster Gauge - 72" Tank, 8-Bolt Mount (RM1833-72)

Squibb Taylor RoadMaster Gauge - 72" Tank, 8-Bolt Mount (RM1833-72)

SQRM1833-72

$2,264.00 AUD
$2,264.00 AUD
Sale Currently Sold Out - Back Orders Possible

Precision Liquid Level Measurement for Mobile Tanks

The Squibb Taylor RM1833 RoadMaster Gauge provides accurate and reliable liquid level readings for 72" diameter mobile tanks. Designed to withstand the rigors of over-the-road transport, this gauge ensures continuous monitoring of tank contents in harsh conditions.

Key Features and Benefits

  • Spring-controlled shock absorber: Reduces stress on the float arm, extending gauge lifespan
  • 4" dial with 8" option: Easy-to-read measurements for quick level checks
  • 8-bolt mounting: Secure installation for mobile applications
  • Wide pressure range: Suitable for various liquids, from LP-Gas to Anhydrous Ammonia
  • Replaceable dial: Simple maintenance for long-term use

Technical Specifications

Specification Value
Tank Diameter 72" (1829 mm)
Mounting 8-bolt adaptor
Dial Size 4" (100 mm) standard, 8" (200 mm) available
Pressure Range Atmospheric to 450 PSI (31 Bar)
Reading Range 5% to 95% of tank contents
Installation Side or end of mobile tanks at centerline
Working Temperature -40°F to 158°F (-40°C to 70°C)
