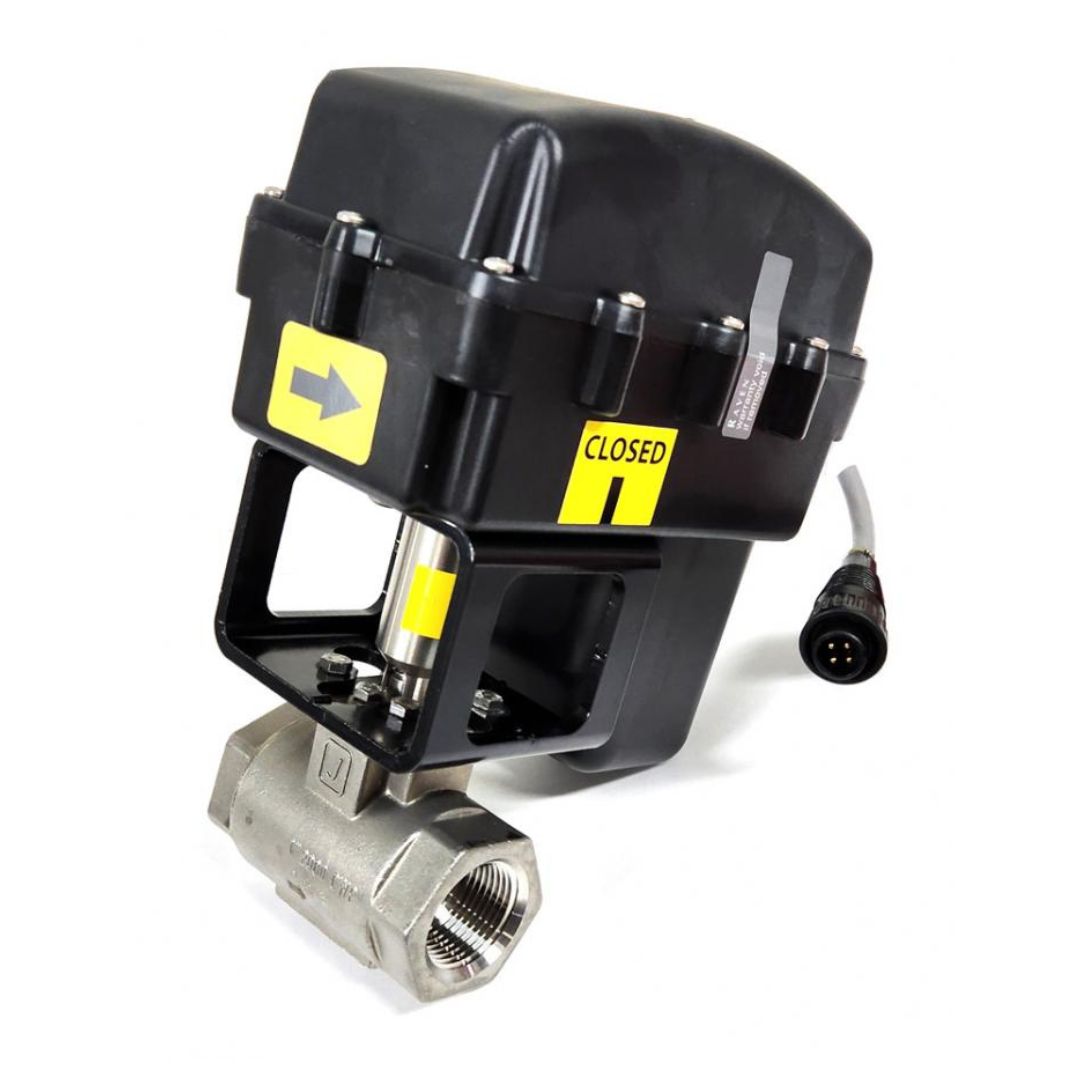

  • The Raven 1" FPT NH3 On/Off Shutoff Valve, featuring a black industrial actuator with a yellow "Closed" label on top, is attached to a metal valve at the bottom. It is designed for precision anhydrous ammonia control in agricultural applications and is depicted against a white background.

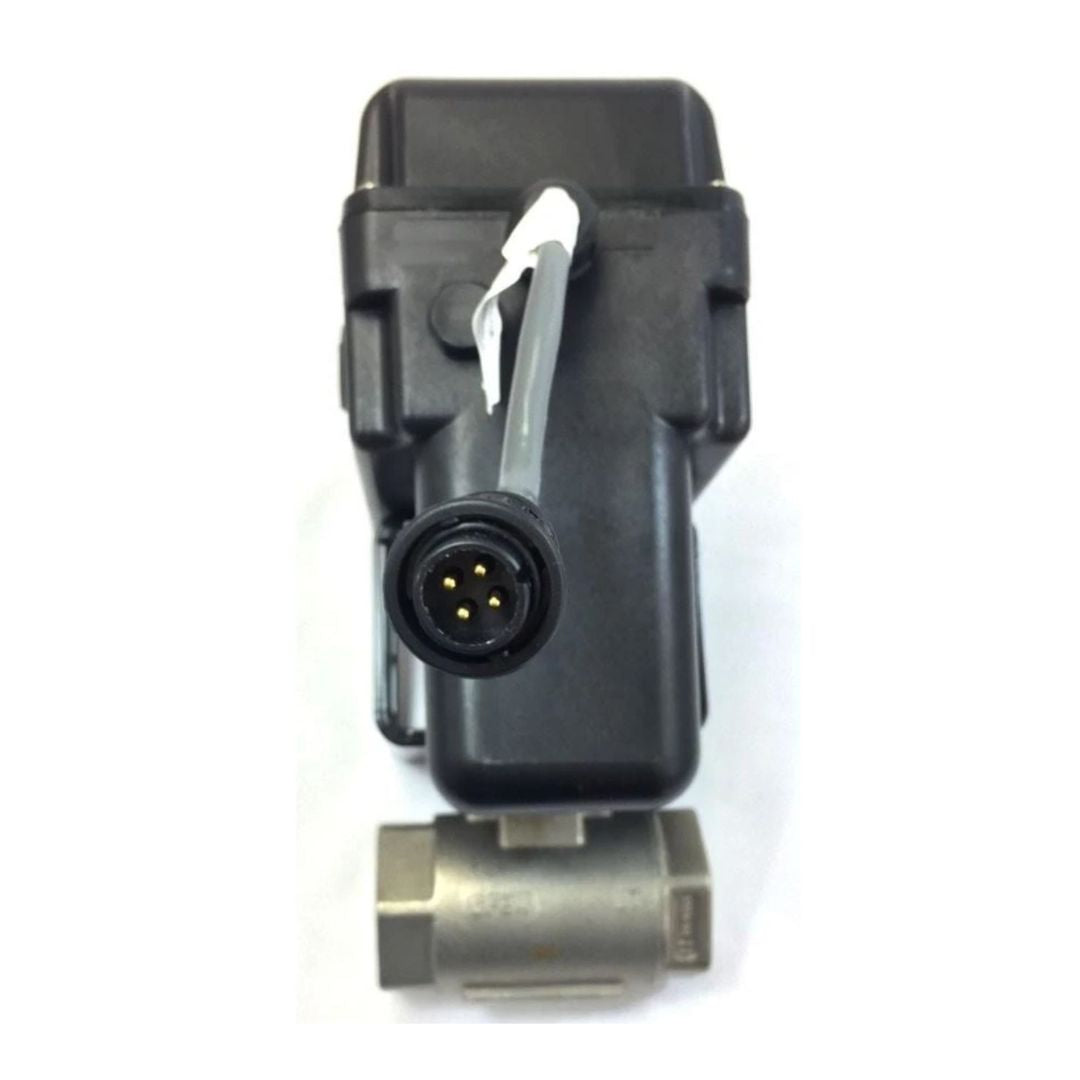

  • Close-up view of the Raven 1" FPT NH3 On/Off Shutoff Valve featuring a black plastic casing, a wired connector, and a metallic component at the bottom, designed for precise anhydrous ammonia control in agricultural applications.
1 3

Raven

MPN: 1-063-0173-876

Raven 1" FPT NH3 On/Off Shutoff Valve

Raven 1" FPT NH3 On/Off Shutoff Valve

RV0630173-876 NH3

$1,008.00 USD
$1,008.00 USD
Sale Currently Sold Out - Back Orders Possible

The Raven 1" FPT NH3 On/Off Shutoff Valve (Part Number: 063-0173-876) is designed for precision and reliability in agricultural and industrial applications. This valve is engineered to provide efficient control of anhydrous ammonia (NH3) flow, ensuring optimal performance and safety.

Key Features:

  • Connection Type: 1" Female Pipe Thread (FPT)
  • Cycle Time: 1.5 seconds for rapid response
  • Connector: 4-pin Conxall connector for secure and easy installation
  • Construction: High-quality materials for durability and longevity
  • Application: Suitable for NH3 systems in agricultural and industrial settings
  • Operating Pressure: Up to 150 psi (10.34 bar)
  • Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)

This valve is ideal for use in systems requiring precise control of NH3 flow, ensuring efficient and safe operation.
