Blackmer
MPN: TLGLF4B
Blackmer TLGLF4B Pump - 4" Flanged Belly Mount, 1-1/4" shaft | 425 GPM
Blackmer TLGLF4B Pump - 4" Flanged Belly Mount, 1-1/4" shaft | 425 GPM
SKU:BMTLGLF4B
Regular price
$8,137.00 USD
Regular price
Sale price
$8,137.00 USD
Unit price
/
per
Couldn't load pickup availability
Blackmer TLGLF4B: High-Flow Propane Pump for Efficient Transport Operations
The Blackmer TLGLF4B is a high-capacity, flanged belly mount pump designed for fast and efficient propane, butane, and anhydrous ammonia transfer in transport operations. With its robust construction and innovative features, this pump delivers exceptional performance and reliability for demanding applications.
Key Features and Benefits
- UL listed for propane, butane, and anhydrous ammonia: Ensures safety and compliance
- High flow rate of 425 GPM (1,608 LPM): Enables rapid loading and unloading of transport vehicles
- Direct belly mount design: Eliminates inlet pipes and valves, reducing flow restrictions and vaporization issues
- Cavitation suppression liners: Minimize noise, vibration, and wear for smoother operation and extended pump life
- Versatile drive options: Compatible with PTO shaft or hydraulic motor (with adapter kit) for flexible installation
Technical Specifications
Specification | Detail |
---|---|
Model | TLGLF4B |
Mounting Type | Flanged Belly Mount |
Inlet/Outlet Size | 4" (101.6 mm) |
Max Flow Rate | 425 GPM (1,608 LPM) |
Max Differential Pressure | 125 PSI (8.62 bar) |
Shaft Size | 1-1/4" (31.75 mm) |
Compatible Fluids | Propane, Butane, Anhydrous Ammonia |
Drive Options | PTO Shaft or Hydraulic Motor (with adapter) |
Certifications | UL Listed |
Share

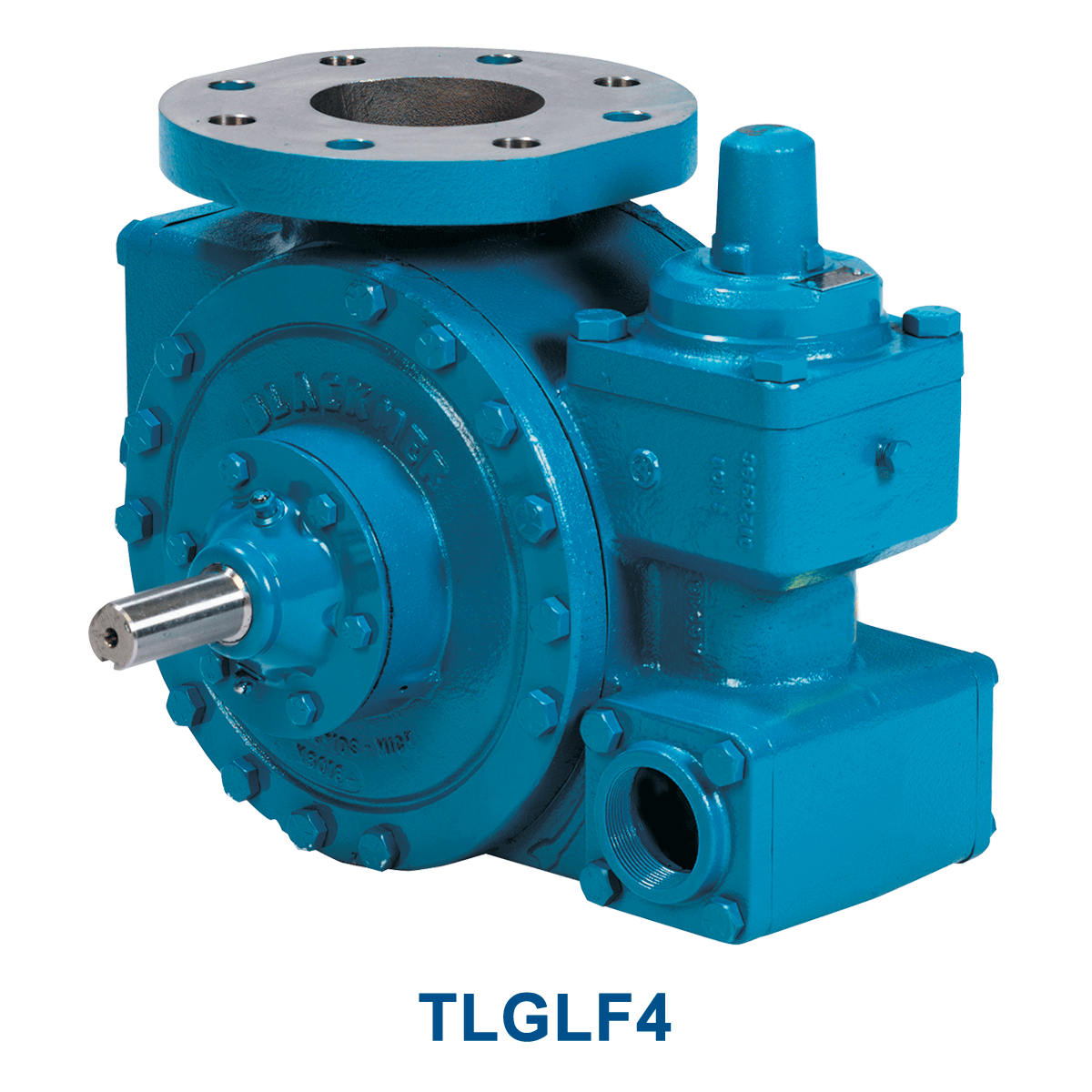

![The Blackmer TLGLF4B Pump features a 4" flanged belly mount and a 1-1/4" cylindrical shaft, specifically designed for efficient transport operations with a high flow rate of 425 GPM. The text "TLGLF4" is prominently displayed below this high-flow Blackmer propane pump.](http://trukare.com/cdn/shop/files/06_tlglf4_1200x1200_b6085cdc-5a58-47ea-bf48-ad75ed8e02e5.png?v=1702771064&width=1445)

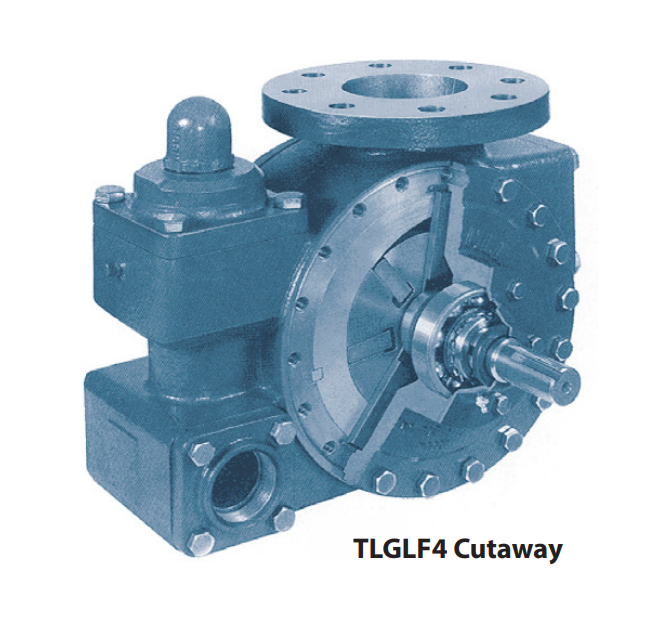

![Industrial pump with a cutaway view illustrating internal mechanisms. Text below reads, "Blackmer TLGLF4B Cutaway - 4" flanged belly mount pump with 1-1/4" shaft, engineered for high-flow propane transport at up to 425 GPM.](http://trukare.com/cdn/shop/files/06_tlglf4_cutaway_843c90af-e59f-4e8e-b74c-c768acb56197.png?v=1702771064&width=1445)
