• The Rochester Senior Gauge - 46" End Mount (A6283-1-46), featuring a robust metal housing, float arm, and dial indicator, accurately measures liquid levels and is suitable for anhydrous ammonia service. It operates reliably across a wide temperature range.
1 1

Rochester

MPN: A6283-1-46

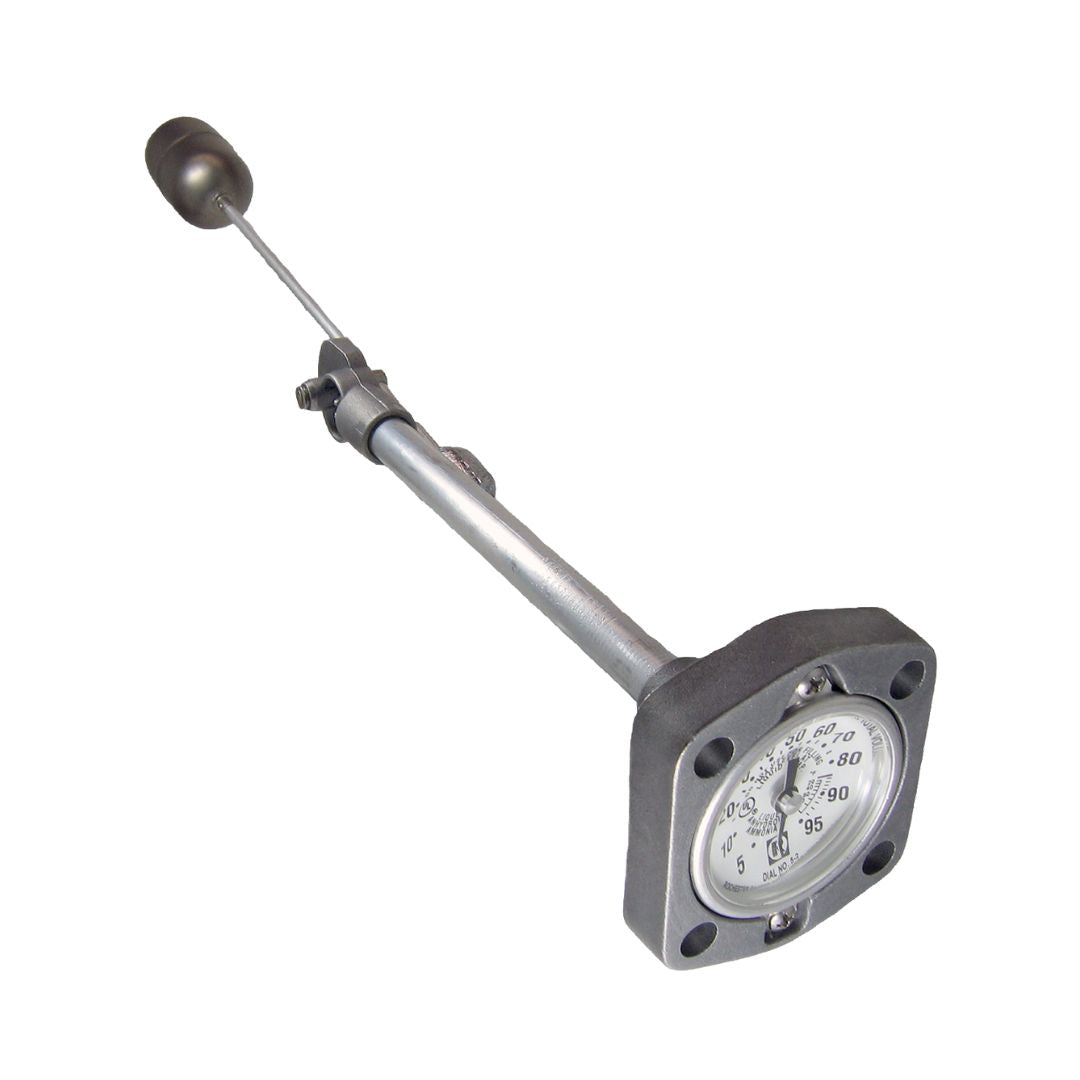

Rochester Senior Gauge - 46" End Mount (A6283-1-46)

Rochester Senior Gauge - 46" End Mount (A6283-1-46)

ROCA6283-1-46

$120.00 USD
$120.00 USD
Sale Currently Sold Out - Back Orders Possible

The Rochester A6283-1-46 Senior Magnetic Liquid-Level Gauge is designed for Anhydrous Ammonia service. This versatile gauge can be mounted on the side, end, or at an angle, making it suitable for various applications.

Key Features:

  • Mounting Options: Side, end, or angle mounting
  • Temperature Range: -40°F to 176°F (-40°C to 80°C)
  • Materials:
    • Head & Gear Housing: Aluminum die casting
    • Bearings, Gear, Pinion, Cross Stud, Bearing, Float Bulb & Dial Screws: Stainless steel
    • Support, Centershaft & Float Rod: Tempered aluminum
    • Counterweight: Lead
    • Magnet: Alnico
    • Gasket: Neoprene
    • Mounting Bolts: Zinc-plated steel (Stainless steel optional)
    • Direct Reading Dials: Hermetically sealed polycarbonate
  • Standard Accessories: Includes #0015-00836 Neoprene gasket and four #0040-00415 zinc-plated steel head bolts (5/16" – 24 x 7/8") for attachment to a flange with a 2-1/2" (63.5 mm) bolt circle
  • Direct-Reading Percentage Dials: Equipped with #5002S00002 dials
