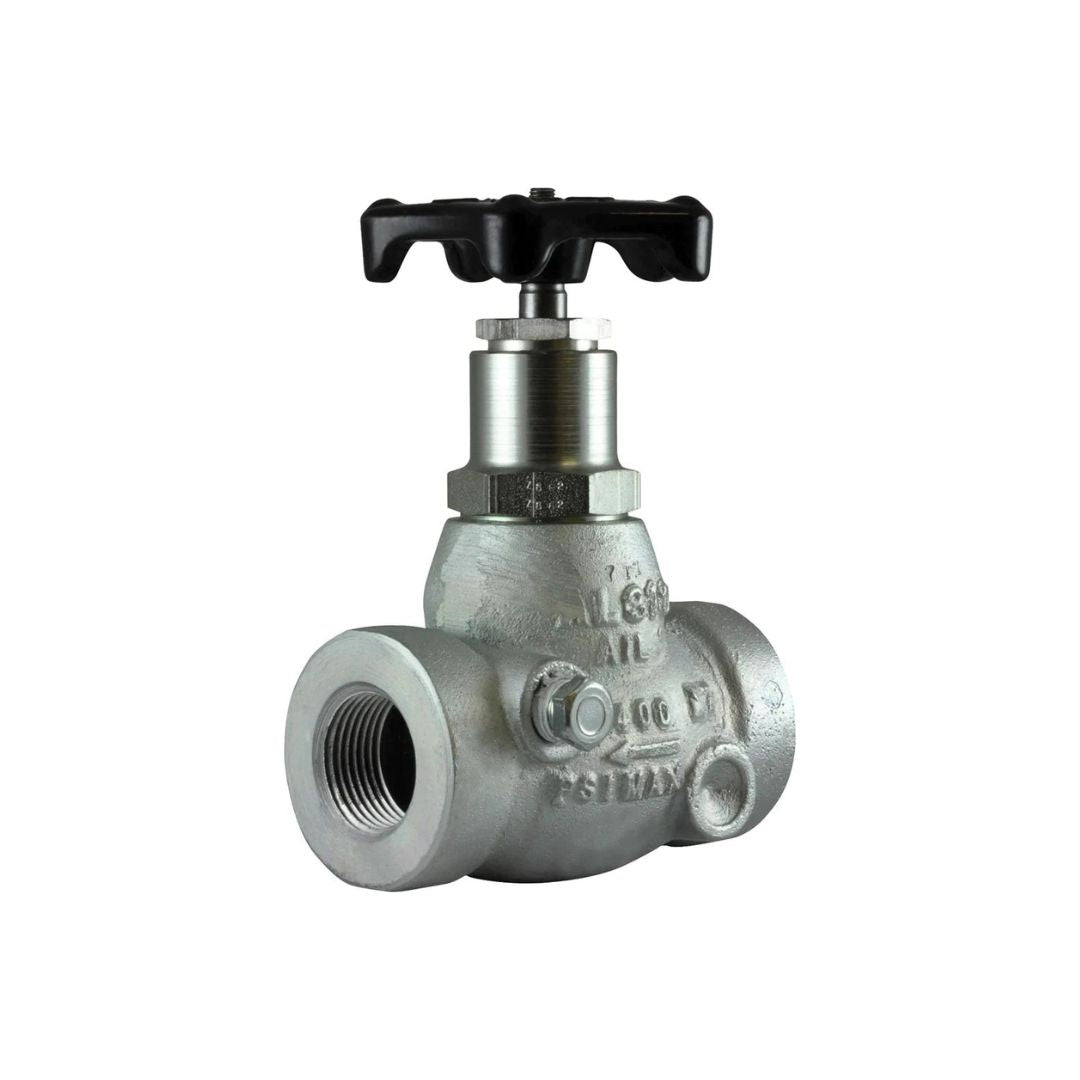

Squibb Taylor 3/4" FNPT Globe Valve AL308P

The Squibb Taylor 3/4" FNPT Globe Valve (Part Number: AL308P) is a heavy-duty valve designed for use in bulk plant piping systems, bobtails, transport trucks, and for filling and vapor return services. This valve is highly suited for the LP-Gas, Anhydrous Ammonia, and chemical and petrochemical industries. It features a robust construction and advanced sealing mechanisms to ensure long-lasting performance.

Key Features:

• UL Listed for LP-Gas and Anhydrous Ammonia.
• Spring-loaded Chevron TFE "Vee" Packing: Provides the most effective seal against stem leakage.
• 1/4" FNPT Plugged Side Outlet: Allows for the installation of a bleed valve or hydrostatic relief valve.
• Self-aligning Seat Disc Retainer: Rides against stainless steel ball bearings to prevent disc wear and ensure long service life.
• Durable Construction: Body and handwheel made of ductile iron, bonnet made of steel and ductile iron.

Specifications:

• Inlet & Outlet: 3/4" FNPT
• Working Pressure: Up to 400 PSI WOG (27.58 bar)
• Operating Temperature: -40°F to +160°F (-40°C to +71°C)
• Body Material: Ductile Iron
• Handwheel Material: Ductile Iron
• Bonnet Material: Steel and Ductile Iron
• Seat Disc Material: Teflon or Nylon

Note: For long-term safe operation, it is recommended that all globe and angle valves be inspected at least once every five years and be repaired or replaced as required.

Parts & Accessories:

AL308 Repair Kit - 119039
AL308 Bonnet Assembly - 119040
AL308 Stem & Disc Assembly - 119041
