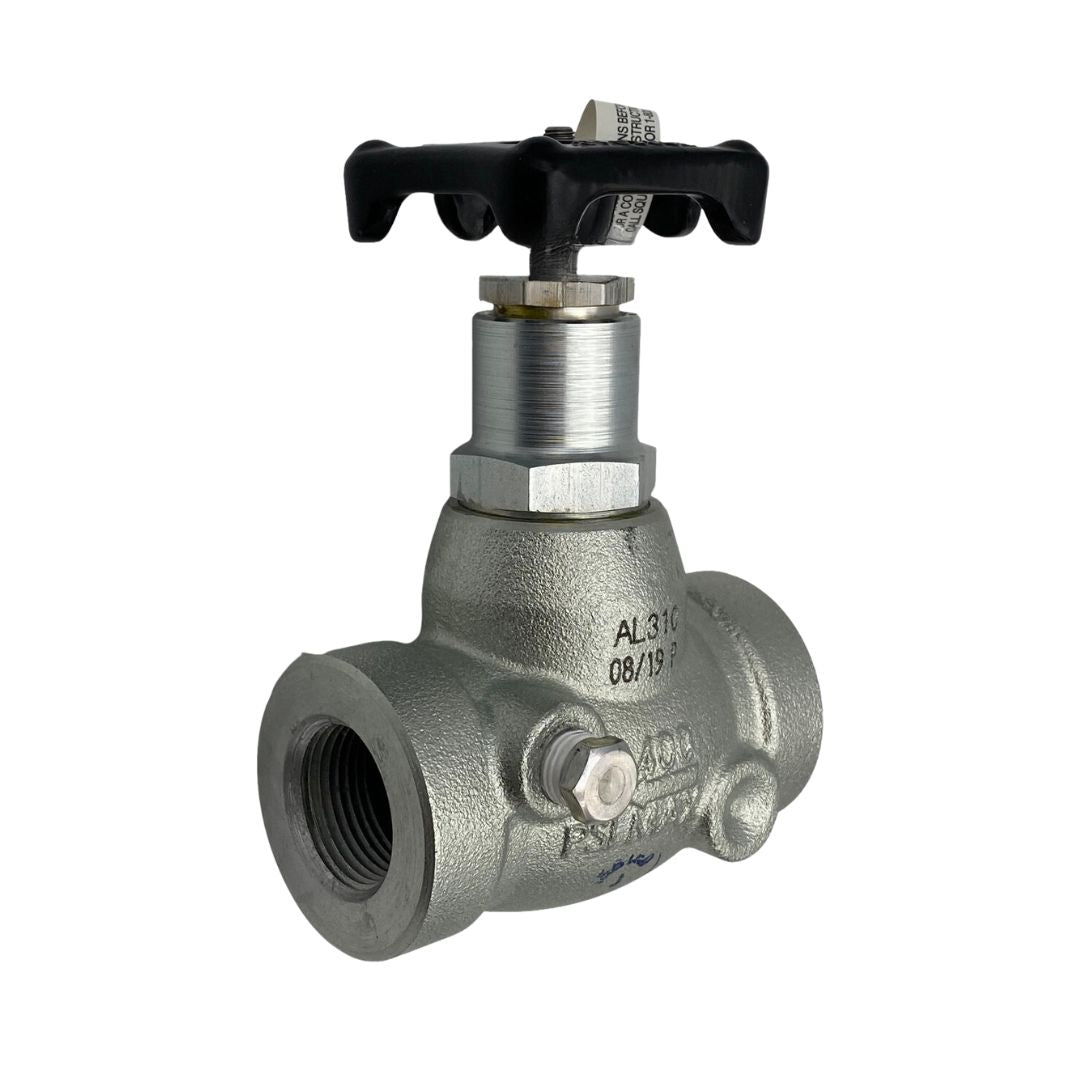

Squibb Taylor 1" FNPT Globe Valve AL310P

The Squibb Taylor 1" FNPT Globe Valve AL310P is a versatile and robust valve designed for use in bulk plant piping systems, bobtails, transport trucks, and for filling and vapor return service. This valve is ideal for applications in the LP-Gas, Anhydrous Ammonia, and chemical and petrochemical industries. It features a durable construction and is designed to handle working pressures up to 400 PSI WOG and operating temperatures from -40°F to +160°F (-40°C to +71°C).

Key Features:

• UL Listed for LP-Gas and Anhydrous Ammonia
• Spring-loaded Chevron TFE "Vee" packing for effective stem leakage seal
• 1/4" FNPT plugged side outlet for bleed valve or hydrostatic relief valve installation
• Self-aligning seat disc retainer with stainless steel ball bearings to prevent disc wear
• Durable Construction: Body and handwheel made of ductile iron, bonnet made of steel and ductile iron.

Specifications:

• Inlet & Outlet: 1" FNPT
• Working Pressure: Up to 400 PSI WOG
• Operating Temperature: -40°F to +160°F (-40°C to +71°C)
• Material: Ductile iron body and handwheel, steel and ductile iron bonnet

Note: For long-term safe operation, it is recommended that all globe and angle valves be inspected at least once every five years and be repaired or replaced as required.

Parts & Accessories:

AL310 Repair Kit - 119059
AL310 Bonnet Assembly - 119060
AL310 Stem & Disc Assembly - 11906
