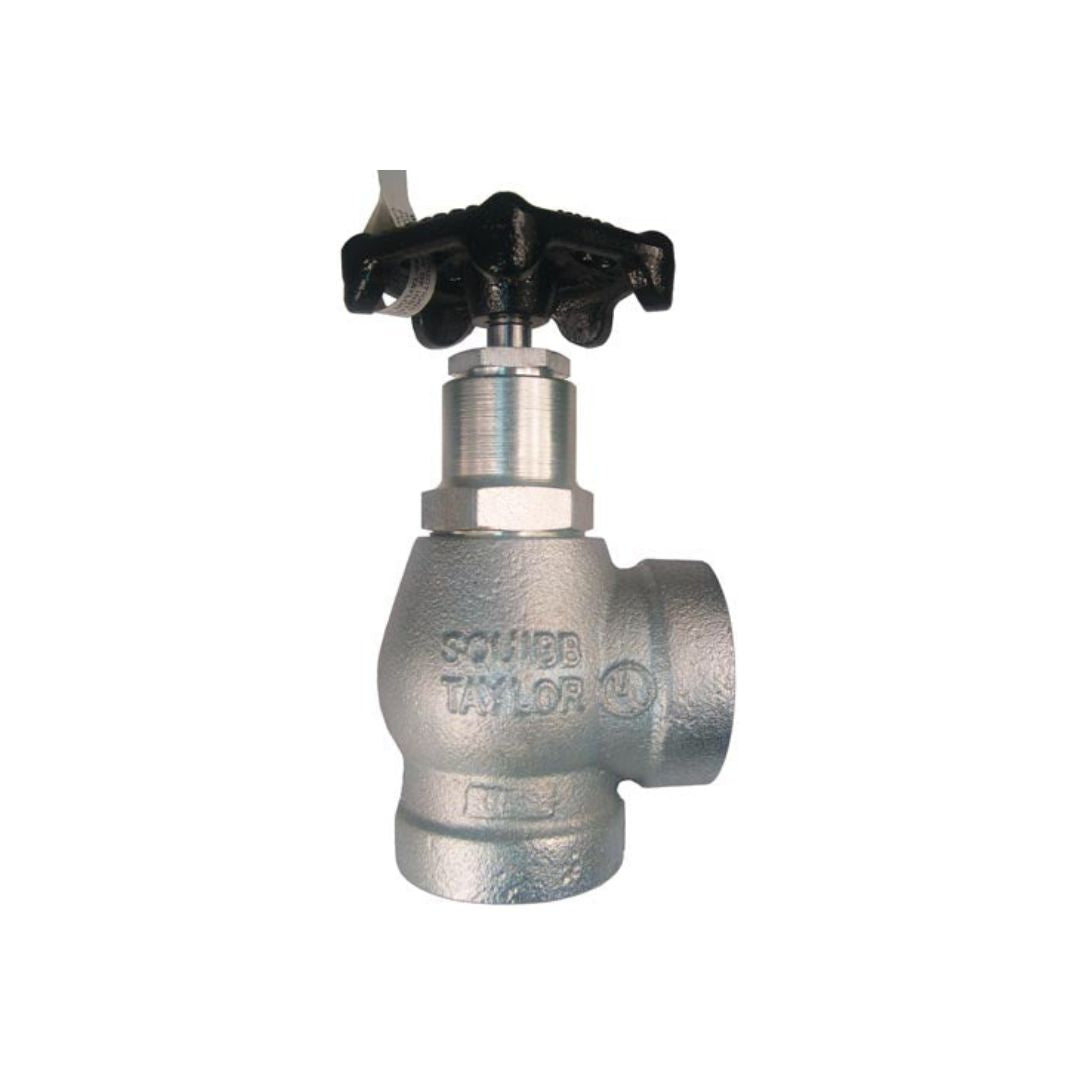

Squibb Taylor 1" FNPT Angle Valve 90 Degree AL311P

The Squibb Taylor 1" FNPT Angle Valve (AL311P / 110300) is an essential component for bulk plant piping systems, bobtails, transport trucks, and for filling and vapor return service. This valve is ideal for use in the LP-Gas, Anhydrous Ammonia, and chemical and petrochemical industries. It features a robust design with a working pressure of up to 400 PSI WOG and an operating temperature range from -40°F to +160°F (-40°C to +71°C).

Key Features:

• UL Listed: Suitable for LP-Gas and Anhydrous Ammonia.
• Effective Seal: Spring-loaded chevron TFE "Vee" packing ensures the most effective seal against stem leakage.
• Side Outlet: 1/4" FNPT plugged side outlet allows for the installation of a bleed valve or hydrostatic relief valve.
• Durable Construction: Body and handwheel made of ductile iron; bonnet made of steel and ductile iron.
• Long Service Life: Self-aligning seat disc retainer with stainless steel ball bearings prevents disc wear.
• Versatile Seat Discs: Available in Teflon or nylon for all sizes of globe and angle valves.

Specifications:

• Inlet & Outlet: 1" FNPT
• Working Pressure: Up to 400 PSI WOG
• Operating Temperature: -40°F to +160°F (-40°C to +71°C)

Note: For long-term safe operation, it is recommended that all globe and angle valves be inspected at least once every five years and repaired or replaced as necessary.
