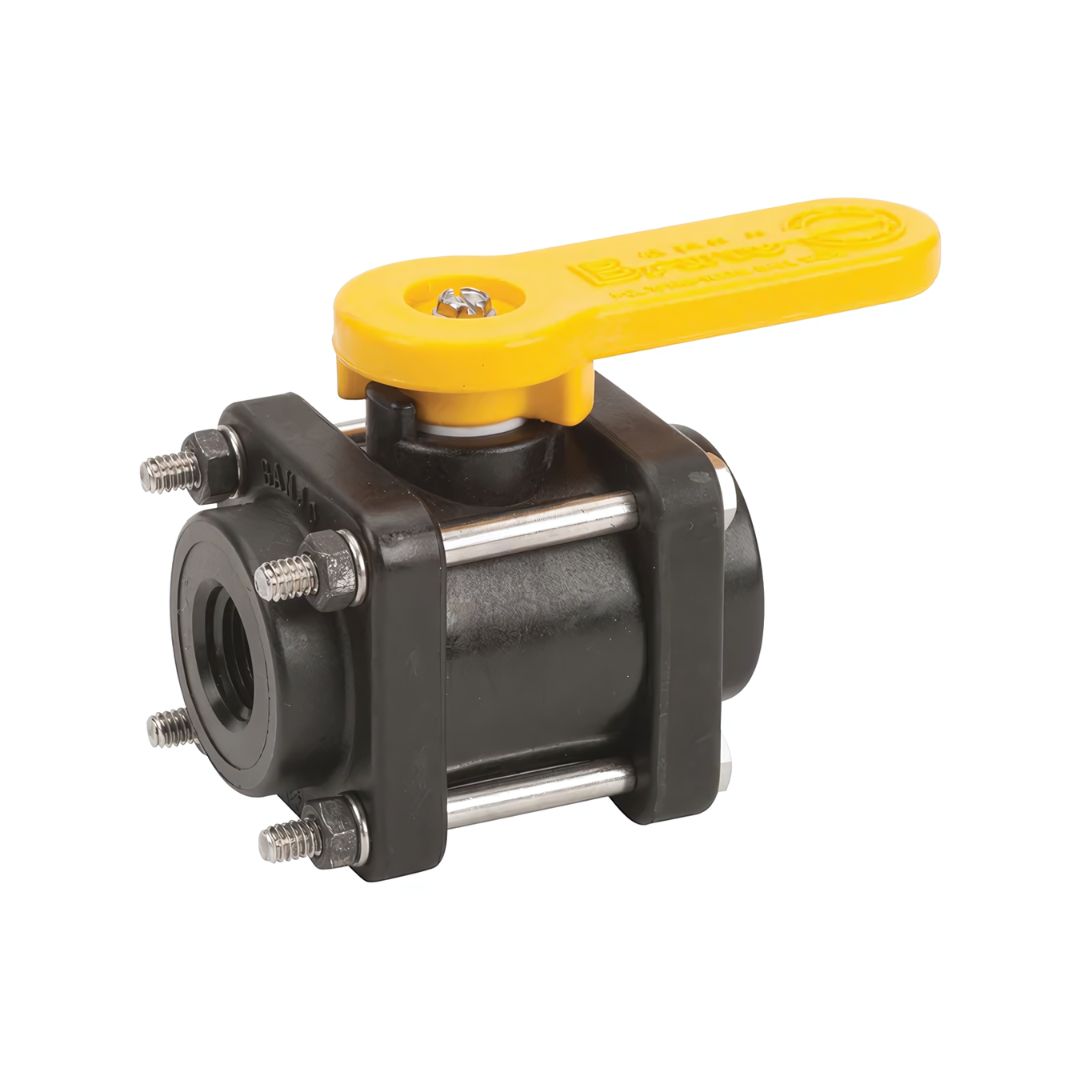

• The Banjo Ball Valve - 1/2" FNPT Polypropylene, Full Port (V050) by Banjo is constructed from black fiberglass-reinforced polypropylene and features a yellow lever handle and metal bolts, making it ideal for agricultural fluid control.
1 1

Banjo

MPN: V050

Banjo Ball Valve - 1/2" FNPT Polypropylene, Full Port (V050)

Banjo Ball Valve - 1/2" FNPT Polypropylene, Full Port (V050)

LQ76063

$137.50 CAD
$137.50 CAD
Sale Currently Sold Out - Back Orders Possible

Banjo Ball Valve: Reliable Fluid Control for Agricultural Applications

Designed for efficient and smooth operation, this Banjo ball valve offers precise flow control with minimal effort, ideal for agricultural and industrial fluid management systems.

Key Features and Benefits

  • Fiberglass-reinforced polypropylene construction: Ensures exceptional strength and durability
  • Self-aligning ball design: Provides smooth operation with minimal pressure required
  • Spherically perfect ball: Guarantees precise contact between ball and seats for optimal sealing
  • PTFE self-lubricating stem bushings: Prevent sticking or binding, enhancing reliability
  • Stainless steel bolts: Offer increased strength and corrosion resistance

Technical Specifications

Specification Detail
Body Style Inline
Pipe Size 1/2 in (12.7 mm)
Port Type Standard
Temperature Range Up to 150°F (65.6°C)
Seat Material PTFE
Handle Type Lever
Stem Material Polypropylene
Overall Length 3.41 in (86.6 mm)
Max. Pressure 150 PSI CWP
Connection Type FNPT x FNPT
Body Material Polypropylene
Valve Structure 3-Piece
Ball Material Polypropylene
Body Seal Material FKM
