Emico
MPN: 730-01-03

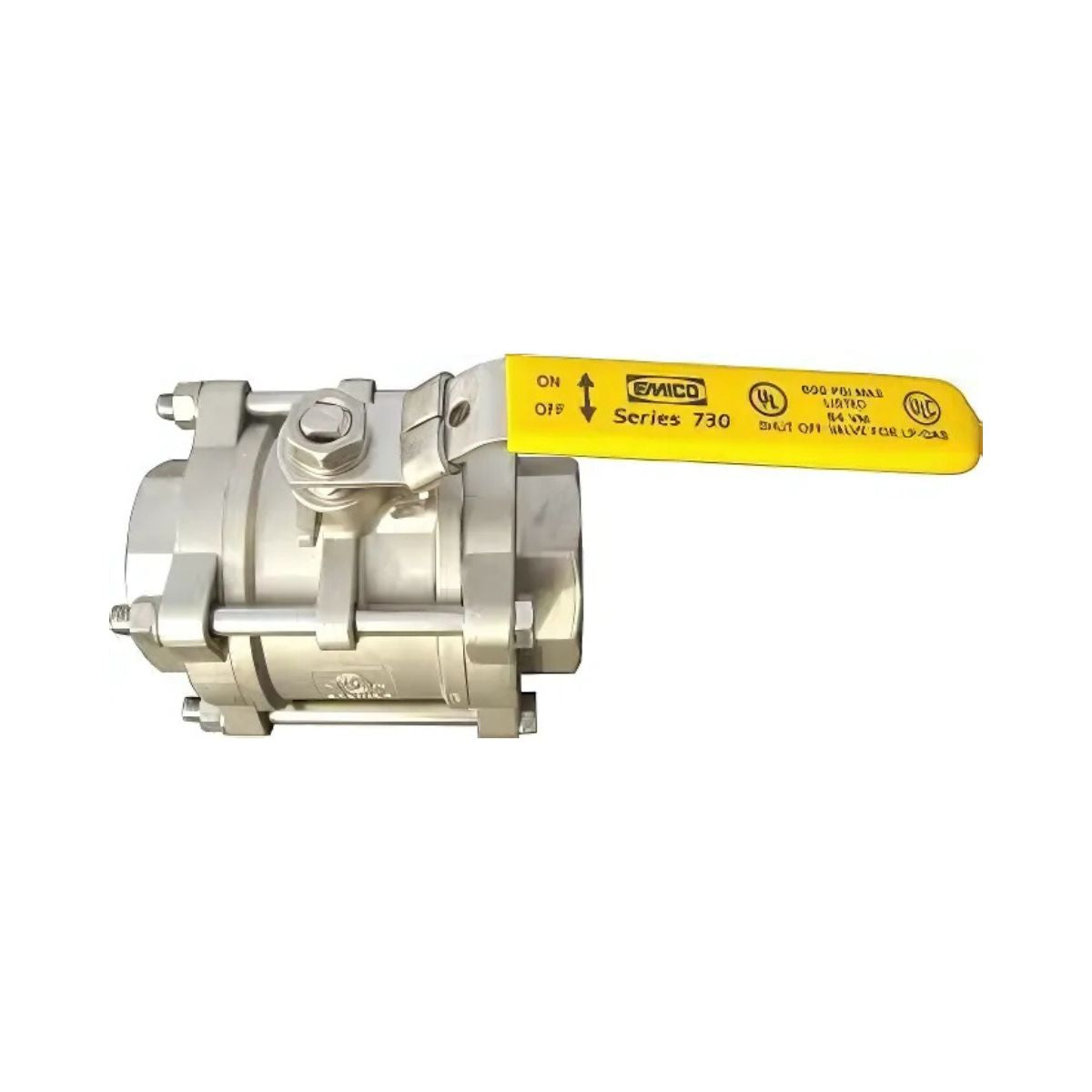

Emico Ball Valve - 1/2" NPT, SS, 600 PSI, Full Port (730-01-03)
Emico Ball Valve - 1/2" NPT, SS, 600 PSI, Full Port (730-01-03)
SKU:EMI050-3
Regular price
$67.90 CAD
Regular price
Sale price
$67.90 CAD
Unit price
/
per
Couldn't load pickup availability
High-Performance Three-Piece Ball Valve for Industrial Applications
Premium stainless steel ball valve engineered for reliable fluid control in demanding industrial and LPG/NH3 applications.
Key Features and Benefits
- Full Port Design: Maximizes flow efficiency and reduces pressure drop
- 316 Stainless Construction: Superior corrosion resistance and durability
- Three-Piece Design: Enables easy maintenance and in-line repairs
- Blow-Out Proof Stem: Enhanced safety and leak prevention
- Locking Handle: Prevents unauthorized operation
Technical Specifications
| Specification | Imperial | Metric |
|---|---|---|
| Connection Size | 1/2" FNPT | DN15 |
| Port Diameter | 0.59" | 15mm |
| Valve Length | 2.88" | 73.2mm |
| Body Length | 2.88" | 73.2mm |
| Handle Height | 2.12" | 53.8mm |
| Handle Length | 4.06" | 103.1mm |
| Pressure Rating | 600 PSI | 41.4 bar |
| Flow Coefficient (Cv) | 17 | - |
| Temperature Range | -20°F to 450°F | -29°C to 232°C |
