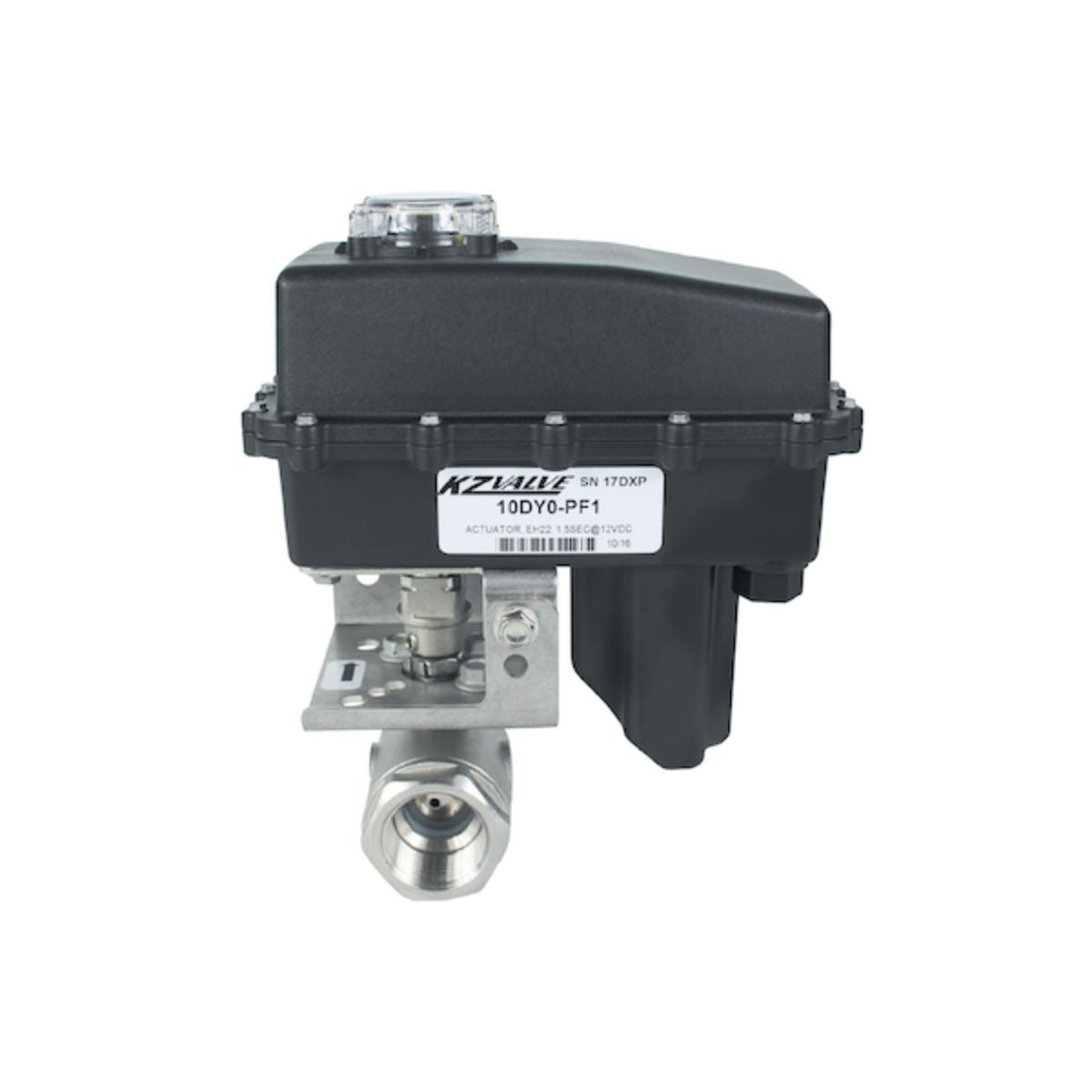

• The KZ Valve Ball Valve - 1/2" SS, 12VDC Actuator NH3 (KZ1754-1CEBS-D01) is ideal for anhydrous ammonia control.

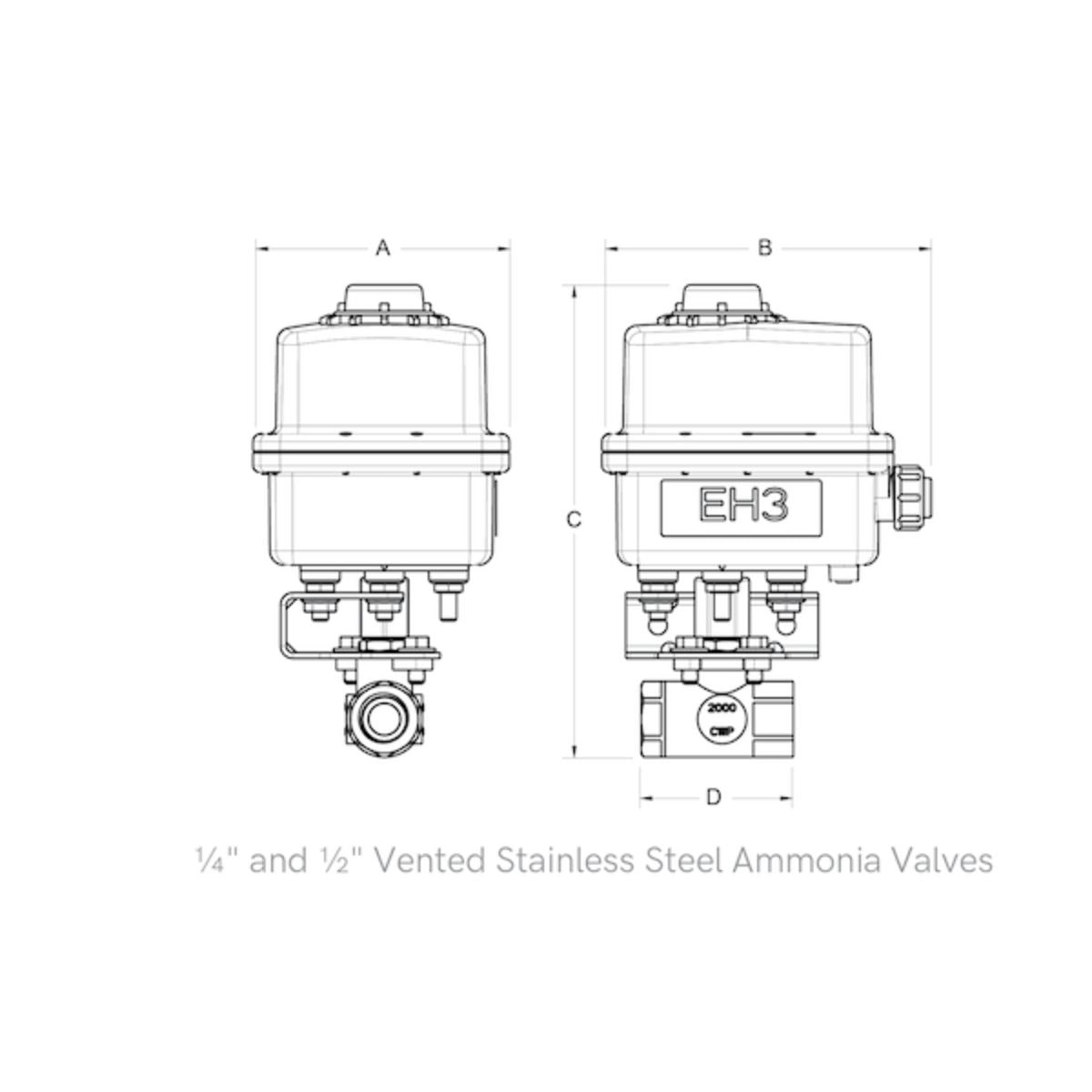

  • Diagram of KZ Valve Ball Valve (KZ1754-1CEBS-D01) in SS, 1/2" for NH3, with front and side views plus dimensions.
1 2

KZ Valve

MPN: KZ1754-1CEBS-D01

KZ Valve Ball Valve - 1/2" SS, 12VDC Actuator, NH3 (KZ1754-1CEBS-D01)

KZ Valve Ball Valve - 1/2" SS, 12VDC Actuator, NH3 (KZ1754-1CEBS-D01)

KZ3-1/2"

$838.20 CAD
$838.20 CAD
Sale Currently Sold Out - Back Orders Possible

High-Performance Electric Ball Valve for Precise NH3 Control

Engineered for reliable anhydrous ammonia control, this KZ Valve electric actuator combines rapid response time with robust stainless steel construction.

Key Features and Benefits

  • Lightning-Fast Operation: 0.2-second cycle time ensures precise flow control
  • Corrosion-Resistant: Full stainless steel construction for NH3 compatibility
  • Versatile Control: 12VDC actuator with 3-wire configuration
  • High-Pressure Rating: Valve body handles up to 600 PSI at 70°F
  • Vented Design: Enhanced safety for NH3 applications

Technical Specifications

Specification Detail
Port Size 1/2" (12.7 mm)
Connection Type ½" MNPT X 1" FNPT
Material Stainless Steel
Voltage 12 VDC
Operating Pressure 250 PSI @ 70°F (17.2 bar @ 21°C)
Maximum Pressure 600 PSI @ 70°F (41.4 bar @ 21°C)
Flow Coefficient (CV) 5.2
Actuation Time 0.2 seconds
Control Type On/Off (SPST)
