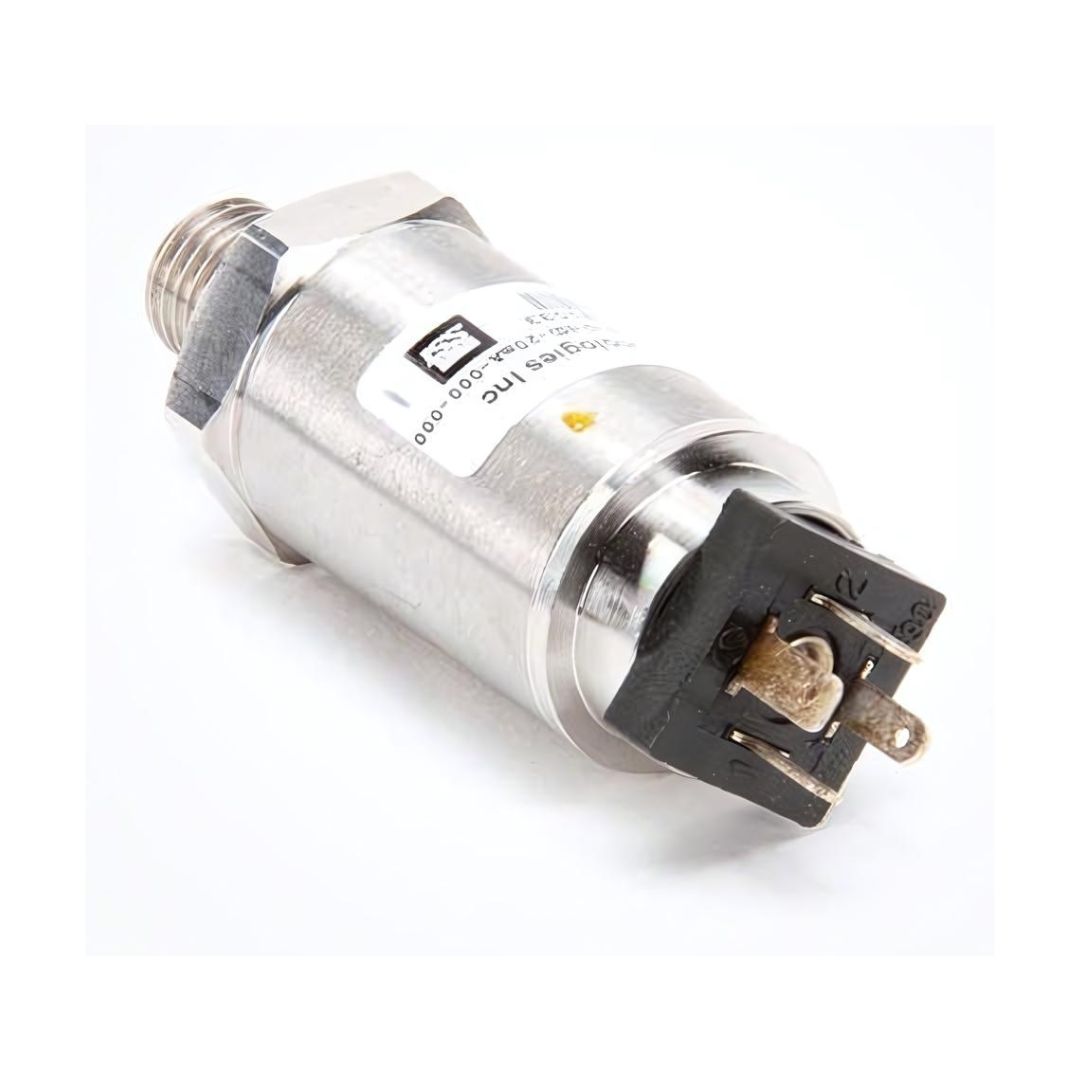

• Close-up of a cylindrical metallic pressure sensor with a connector at one end and threading at the other, labeled "Raven Pressure Transducer - 3000 PSI, 4-20 mA | DIN Connector (422-0000-081)". Designed for industrial pressure monitoring, this Raven transducer features a robust 4-20 mA output.
1 1

Raven

MPN: 1-422-0000-081

Raven Pressure Transducer - 3000 PSI, 4-20 mA | DIN Connector (422-0000-081)

Raven Pressure Transducer - 3000 PSI, 4-20 mA | DIN Connector (422-0000-081)

RV4220000-081

$966.90 CAD
$966.90 CAD
Sale Currently Sold Out - Back Orders Possible

Precision Pressure Monitoring for Industrial Applications

The Raven 3000 PSI Pressure Transducer offers accurate pressure measurement for demanding industrial environments. This robust sensor provides reliable 4-20 mA output, making it ideal for various high-pressure monitoring applications.

Key Features and Benefits

  • High-pressure capability: Measures up to 3000 PSI for versatile industrial use
  • 4-20 mA output: Ensures compatibility with standard control systems
  • DIN connector: Facilitates easy installation and secure connections
  • Durable construction: Withstands harsh industrial environments
  • Precise measurements: Delivers accurate pressure readings for optimal system control

Technical Specifications

Specification Value
Pressure Range 0-3000 PSI (0-206.84 bar)
Output Signal 4-20 mA
Connector Type DIN
Operating Temperature -40°F to 185°F (-40°C to 85°C)
Accuracy ±0.5% Full Scale
Response Time <1 ms
Material Stainless Steel
