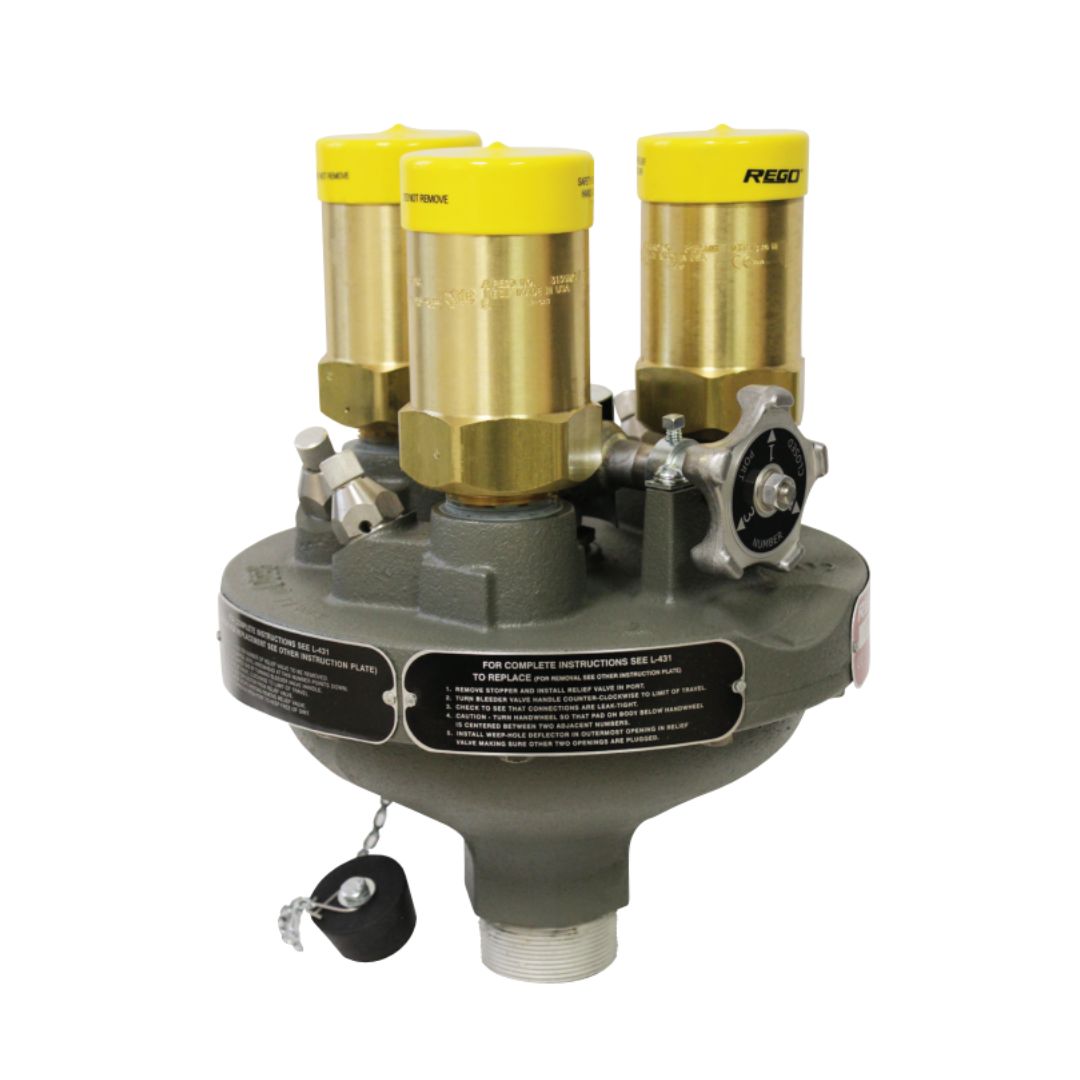

• The RegO Delta Port Relief Valve Manifold 2" MPT ASME LPG 3 Reliefs is equipped with three yellow-capped cylinders and silver fittings on a gray base, making it ideal for use in LPG systems. It features labels and a handle to enhance functionality and is compatible with large stationary pressurized storage containers, working seamlessly alongside the RegO brand manifold.

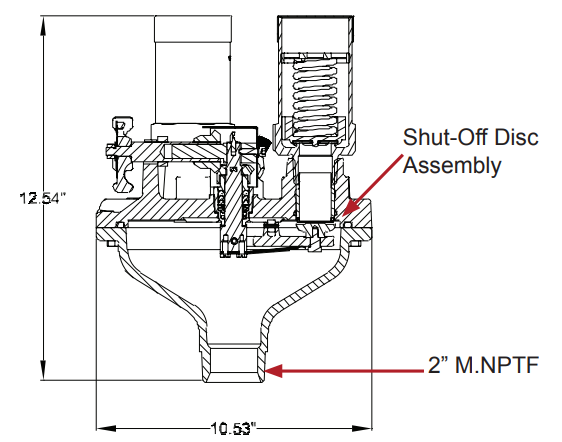

  • This technical diagram illustrates a valve assembly for large stationary pressurized storage containers, showcasing labeled components such as a shut-off disc assembly and a 2" M.NPTF connection. Perfectly suited for LPG systems, this arrangement can incorporate the RegO Delta Port Relief Valve Manifold 2" MPT ASME LPG 3 Reliefs for improved safety.

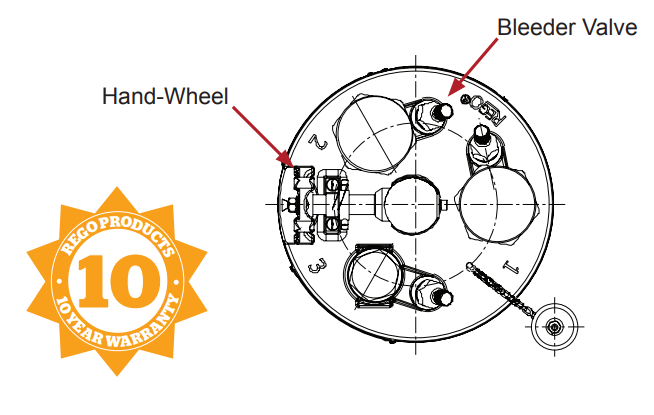

  • Technical diagram of a circular mechanism for LPG systems, featuring labels for the "Hand-Wheel" and "Bleeder Valve." It also emphasizes integration with the RegO Delta Port Relief Valve Manifold 2" MPT ASME LPG 3 Reliefs. Includes a badge indicating a 10-year warranty. Perfect for use in large stationary pressurized storage containers.
1 3

RegO

MPN: 8533AG

RegO Delta Port Relief Valve Manifold 2" MPT ASME LPG 3 Reliefs

RegO Delta Port Relief Valve Manifold 2" MPT ASME LPG 3 Reliefs

REG8533AG

$6,249.70 CAD
$6,249.70 CAD
Sale Currently Sold Out - Back Orders Possible

The RegO Delta Port Relief Valve Manifold (Part Number: 8533AG) is designed specifically for use as a primary relief device on large stationary pressurized storage containers. This manifold features a robust construction and advanced functionality to ensure safety and efficiency in LPG systems.

Key Features:

  • Application: Ideal for large stationary pressurized storage containers.
  • Connection: 2-inch NPT threaded container connection.
  • Relief Valves: Includes three 3135MG relief valves.
  • Flow Rating:
    • 5,549 SCFM (air) @ 120% of set pressure for one valve.
    • 11,098 SCFM (air) @ 120% of set pressure for two valves.
  • Materials:
    • Body: Ductile Iron
    • Resilient Parts: Teflon
    • Clapper Disc: Stainless Steel
    • Bleeder Valve: Stainless Steel
  • Serviceability: Allows for servicing or replacement of any one of the relief valves without evacuating the container.
  • Hand-Wheel Functionality: Selectively closes off the entrance port to the relief valve being removed while the remaining relief valves continue to protect the container.
