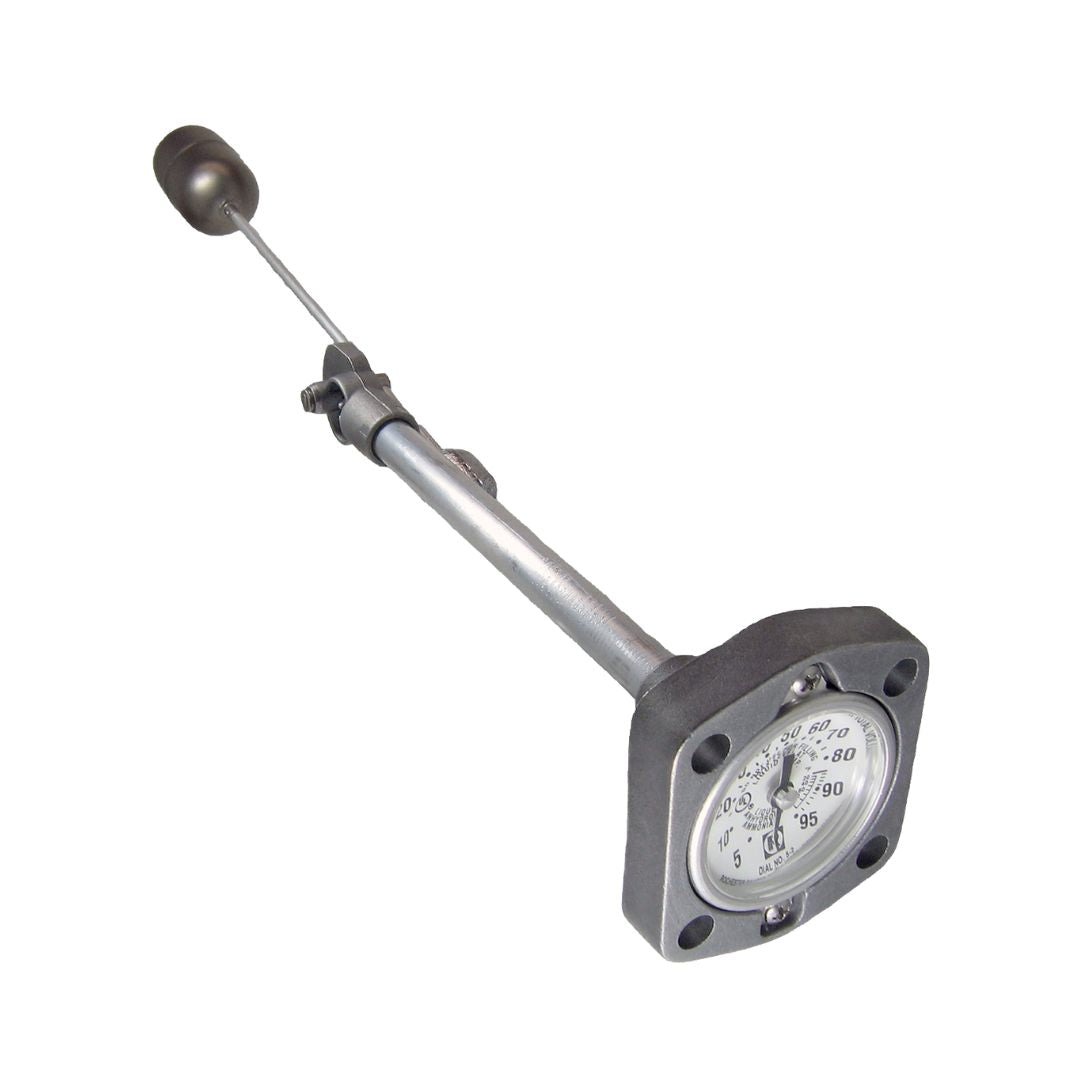

• The Rochester Senior Gauge - 41" Top Mount Liquid Level Sensor (A6280-1-41) from Rochester is a mechanical device that includes a precision gauge with a needle and float sensor attached to an adjustable rod with a mounting base.
1 1

Rochester

MPN: A6280-1-41

Rochester Senior Gauge - 41" Top Mount Liquid Level Sensor (A6280-1-41)

Rochester Senior Gauge - 41" Top Mount Liquid Level Sensor (A6280-1-41)

ROCA6280-1-41

$152.30 CAD
$152.30 CAD
Sale Currently Sold Out - Back Orders Possible

Precision Liquid Level Monitoring for Large Tanks

The Rochester A6280-1-41 Senior Gauge is a top-mounting liquid level sensor designed for accurate measurement in 41" diameter tanks. This robust gauge provides reliable level readings for anhydrous ammonia and other compatible liquids.

Key Features and Benefits

  • Top-mount design: Easy installation and maintenance
  • Direct-reading percentage dial: Quick and clear level indication
  • Durable aluminum construction: Long-lasting performance in harsh conditions
  • UL listed for NH3 service: Ensures safety and compliance
  • Suitable for mobile applications: Withstands shock and vibration

Technical Specifications

Specification Value
Tank Diameter 41" (1041.4 mm)
Mounting Type Top Mount
Pressure Rating 375 PSI (25.8 Bar)
Temperature Range -40°F to 176°F (-40°C to 80°C)
Accuracy ±5% of dial indication (typical)
Bolt Circle 2-1/2" (63.5 mm)
Gasket Material Neoprene
Dial Type Direct-reading percentage
UL Listing Yes, for NH3 service
